Product Details

Brand Name	Sinome		Place of Origin	China
Model Number	AJK-25

Product Description

Delivery Time:negotiation
Certification:KA

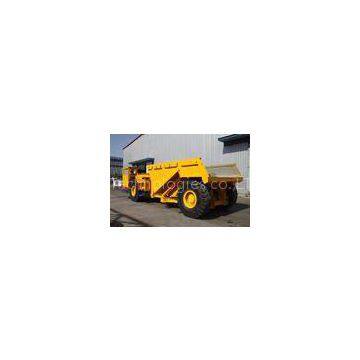

12.5m3 Mining Utility Vehicles 168 L/min for transporting the ore to the surface?

AJK-25 LPDT is mainly used in underground mine, particularly for transporting the ore to the surface. It can also be used for the construction of railways, highways, water conservancy and other tunnel projects. This machine employs CUMMINS QSM11 engine, and is deployed with dry-type platinum exhaust cleaner and silencer provided by ECS. The hydraulic torque converter, power-shift gearboxes are provided by DANA.The axle is from Kessler. Service brake system uses full-hydraulic two-line mechanism, and parking brake system is spring brake, hydraulic release which is reliable and easy to operate. The steering system adopts load-sensing technology and thus the steering system is always with the highest priority. The major components of hydraulics system mainly employ Rexroth, Parker,Mico and other world-renowned company\'s products. Structural design employs 3-D parameters modeling and strength analysis so as to ensure the strength of the entire vehicle.

Weights	Operating weight	23,000kg
Total loaded weight	48,000kg
Operating capability	Maximum tractive effort	235kN
Maximum grade ability	6.4km/h fully loaded at 15%
Dumping angle	70°
Box std.	12.5m3
Operating time	Discharging ?time	15s
Lowering time	7.6s
Steering time	6.0s
Speed	1st Gear	4.7km/h
2nd Gear	11.0km/h
3rd Gear	18.9km/h
Engine	Diesel engine	Cummins QSM11
Output	250kw/2100rpm
Maximum torque	1674Nm/1400rpm
Driver cab	Meet American SAE Heavy duty Canopy ROPS/FOPS Standard
Transmission system	Torque converter	DANA CL5000
Transmission	DANA R36000
Axles	KESSLER D81
Tires	18.00-25-32PR L-3S TT
Electrical system	System voltage	DC24V
Alternator	28V/100A
Starter motor	7.5kW/24V
Batteries	Two 12 V / 200 Ah
