Large P10 Indoor Text / Graph / Picture Electronic Led Display Screen

FOB Price

Negotiable / Kilogram

1 Kilogram(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HM-led		Place of Origin	China
Model Number	P10

Product Description

Delivery Time:7-25 working days

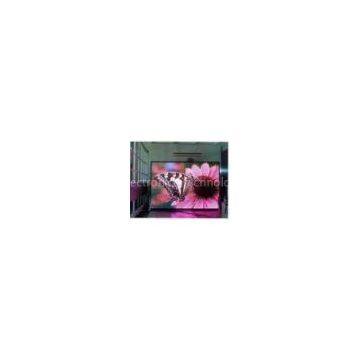

Large P10 indoor? text / graph / picture electronic led display screen

P10 indoor led display screen

1.Resolution:10000dots
2.Brightness:7500nits
3.Stable capability
4.CE&RoHs certificate

?

indoor led display?screen DISCRIPTION:

1. Function and Technology Character
???
??? (1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.

??? (2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.

??? (3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.

??? (4) Line-Double technology is adopted for the picture adjustment.

??? (5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.

??? (6) Can be used indoor in all kinds of weather, and excellent capability of antisepsis, waterproof.

2.Spec Parameters

PLED-OF-10 Module Parameter
Dimensions(w*h)	160mm*160m	Resolution(W*H)	16×16
Pixel Pitch(mm)	10mm	Pixel Density	10000 Pixels/m2
Pixel Configuration	1R1G1B	Tual Pixel Density	?
PLED-OF-10 Cabinet Parameter
Dimensions(whd)	960mmx960mmx150mm	Max Power/m2	780W
Physical Resolution(w*h)	96x96	Module Quantity	36
Weight/Cabinet	62kg	Physical Pixels(total)	9216
Average Power/m2	260W	Material	Steel
PLED-OF-10 Display ?Parameter
Parameter	Value	Gray Scale	4096
Brightness(calibrating value)	≥5000	Weight	65kg/ m2
Red Wavelength(dominant)	623nm±1.5nm	Colors Capability	30bits
Green Wavelength(dominant)	525nm±1.5nm	Refresh Rate(PAL/NTSC)	300HZ
Blue Wavelength(dominant)	470nm±1.5nm	Minimum Frame Rate	60HZ
Brightness(max/min)	1.1:1	Drive Type	Constant current drive
View Angle (min, 50% brightness)	Horizontal 160(+808-80)deg. Vertical 60(+308-30)	Scan Type	1/4SCANING
Recommended Min. Viewing Distance	14	Control	Simultaneous with PC,pixel to pixel
Brightness Control	256	Input Voltage	AC220V/50Hertz or AC110V60Hertz
Date Transmission	UTP<100m, Multi-mode Optical Fiber <500m; Single-mode Optical Fiber<5000m	Color Temperature	Brightness of Red, Green and Blue adjustable by the software 100 grade. Color Temperature adjustable according to requirement
Digital Processing	12	Defects Rate	≤0.00001
MTBF	>10,000 hours	Life Span(50% Brightness)	>100,000 hours
Module Brightness Uniformity	<5%	Flatness	±1mm
Ingress Protection	IP65
