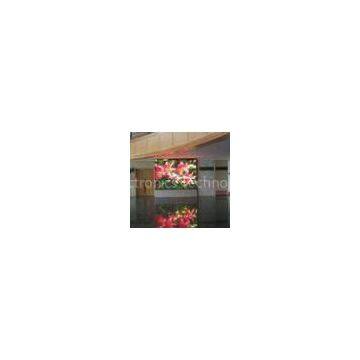

P4 SMD full color indoor High Resolution Animation led display screen

Item

Technical Specification

Pixel

Pixel pitch:? 4mm

Pixel configuration: 1R1G1B

Brightness:?? Red: 300mcd?? Green: 850mcd?? Blue: 180mcd???????????

Wave length:? Red: 625±2nm? Green: 525±2nm? Blue: 470±2nm

Module resolution:??32x32 pixels

Module

Module size:? 128mmx128mm

Cabinet size:? 1024mmx896mm

Cabinet

Cabinet resolution:?57344 pixels

Cabinet material: Steel

Gross weight: 42kg

Module?quantity:?24pcs=?4(w)?x?6(h)

Power consumption?: Max.:500W/m2??? Everage: 900W/m2

Screen parameter

Drive method: 1/4 scanning

Brightness: 2000-3000cd/m2? adjustable

IC driver: MBI 5026

Density: 10000 pixel/m2

Whole?display?flatness:?≤?1mm?juncture

Best?view?distance:?≥?10m?

Viewing angle:? Horizontal:?? 120°?????? Vertical:? 60°

Humidity(RH):?≤?90~95%

Working temperature: from -30°C to +60°C

Working voltage: AC220V/110V±10%

Refresh?frequency:? 2400Hz(Zdec)? ≥?300Hz(Linsn)

Frame?rate:?≥?60Hz

Protection?grade:?IP45

MTBF: More than 10000hrs

Life time: 100,000 hrs

Control system

Control system: Linsn

Signal interface: DVI

Communication?distance:?Internet?cable:?≤120m?/?Fiber?cable:?1000m

Systems operating platforms?: XP,WINDOWS(WIN95,WIN98,WIN2000)
