EM Servo Motor System

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	EMHEATER		Place of Origin	China
Model Number	servo motor

EM Series Servo System

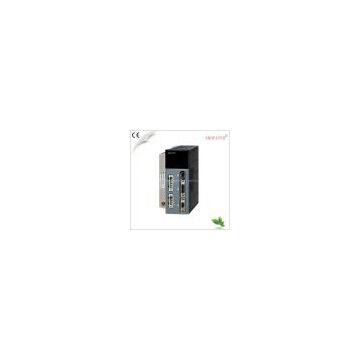

Servo Drive Feature:

1. Power Voltage: single phase AC 220V±15% / 3 phase AC 220V±15%.

2. Control Model: Position, speed, torque, speed trial run, and JOG trial run.

3. Built-in regenerative brake.

4. Optional incremental encoder, wire-saving encoder, absolute encoder and resolver.

5. Speed frequency response≧400Hz.

6. Speed fluctuation is less than 0.03% of rated speed.

7. Speed control ratio 1:5000.

8. Input pulse frequency: 0~500 KHz.

9. Applicable for servo motor with less than 5 times moment of inertia.

10. Strong protection function, abundant control models and higher performance.

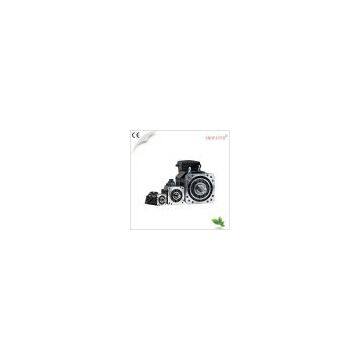

Servo Motor Feature:

1. The max torque is up to 300% of rated torque.

2. The max current is up to 300% of rated current.

3. The max speed is up to 4500rpm.

4. Be used to drive the feed shaft of various machineries.

5. Various models (200W~22KW, with brake etc).

6. Standard mounted wire-saving encoder 2500rpm, optional absolute encoder 131072rpm or resolver.

7. Standard protection configuration is IP65.

8. The malfunction ratio is less than 0.01% within 18 months warranty.
