AC Choke

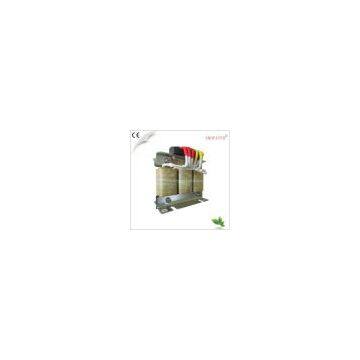

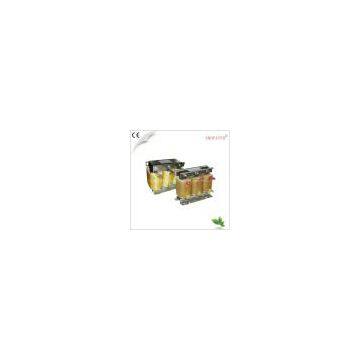

EM Three Phase AC choke

Advantage Features:

Inverter input ac line reactor, ac choke, reactor 2%

1: System voltage: 3phase AC380v-440V

2: Rated current:1.8A-1250A

3: Using frequency: 0-60Hz.

4: Input reactor: 0.75kw-600kw

5: Altitude: <100 0 meters

6: Environment temperature: -25^OC ~ 40 ^OC

7: All copper and silicon steel sheet

8: Small size, light weight, small footprint, easy to install.

9: Increase Drive System Reliability

10: Reduce Harmonics; Reduce Surge Currents; Reduce Voltage Doubling Effects.

11: Improve True Power Factor.

12: All-copper wire and silicon steel sheet

13: Elegant design

14: Noise level: <40db

15: Standard: IEC289:1987

16: Protection class: IP00

17: Insulation class: H

18: Standard: IEC289: 1987 Reactor

19: GB10229-88 Reactor (equivalent to IEC289:1987)

20: JB9644-1999 Reactor for semi-conductor transmission

21: Insulation Resistance: 1000VDC, insulation resistance >=100MOhm.

22: Reactors are used vacuum dipping process, the high temperature bake curing. Coil has good

   insulation properties, the overall mechanical strength, moisture resistance;

23: Coil is F, H class insulation system, greatly improving the reliability of long-term operation;

24: Low temperature, low loss, low cost, utilization rate;

25: The input reactor to limit the form of harmonic wave feedback circuit. They can also be reduced

   because of the converted DC Link Capacitor input rectifier caused by AC current and frequency;

   baseline reactor pressure drop UD = 2%, with a feeder unit for the drive and automatic operation

   of the transformer, but also for uk <1% of the system operation.

Function:

1. Reduction of harmonic wave, Improvement of the power factor.

2. Over-voltage restriction and clean the power grid.

3. Reducing the stress caused by noise to motor extended the life span of motor.

4. Improvement of low-frequency conduction emission/sensitivity.
