Kehao-Process Controller with Alarm for Production Line

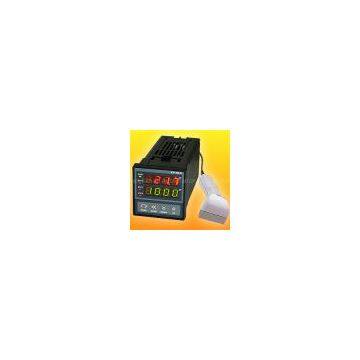

KH102T is a process controller (four limits alarm instrument)  is with high-accuracy measuring compatible with data collection.

Measure accurately and control many physical data: temperature, pressure, liquid level, gravity, instantaneous flow and etc

Omnipotent input with kinds of transmitting signals. Modular construction Output. Output functions can be configured optionally.

Alarm Functions:The alarm output function can be configured availably and can be set up to high limit, low limit, deviation high limit, deviation low.

Communication:The controller adopts modern universal MODBUS communication agreement, with maximum baud rate up to 19200 bit/s.

The controller can be used with infrared barcode scanner communication to measure data, designed to be used for achieving automation in automatically producing detecting process.

Size:A:96X96 B:48X96 C;96X48 D:160X80 E:80x160 F:72X72 G:48X48mm

Main techonogy index

Accuracy: ±0.2%FS+1digit

Sampling period: ≤0.5s

 Power voltage: 85-240VAC

 T.C Cold-junction compensation :Internal components or external components CU50 compensation

 Power consumption:<5W

 T.C.-off or over-range: display OPEN

 Surface Mount Technology(SMT): Design more concise and flexible

Input type:

T.C: K S E J T B N

RTD: PT100CU50CU100

Linear voltage: 0-5V1-5V

Linear current: 0-10mA4-20mA

Extensional specifications:customerized additional input type

can be available based on aboved input type.

 Output module specification

R1A: relay output (0.8A normal open)

R1B: relay output (0.8A normal close)

R1C: relay output (0.8A normal open and normal close)

R2A: relay output (3A normal open)

R2B: relay output (3A normal close)

R2C: relay output (3A normal open and normal close)

W1: contactless SCR output (100-240VAC/0.2A)

G: Solid-state relay slaving voltage (DC12V/50mA output)

K1: single-route SCR zero crossing trigger

K2: dual-route SCR zero crossing trigger

I1: photoelectronic isolated current transmission output

S1: photoelectronic- isolation RS485 communication interface

S2: optoelectronic- isolation RS232 communication interface

U1/U2/U3: 5V/12V/24VDC isolated feed
