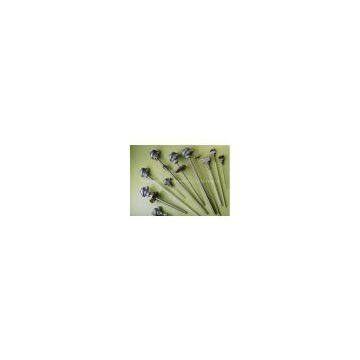

Temperature Sensor-Metal Shealth Thermocouple

Metal Sheathed Thermalcouple -Temperature Sensor

Application

Widely used in aviation, nuclear, petroleum, chemical, metallurgical, mechanical, electrical and other industrial sectors and scientific fields, Pt100 is usually used with indicator, recorder, controller, and computer and other devices. Pt100 can direct measure a variety of liquid, steam& gas and solid surface temperature from -200°C to 1800°C. Especially suitable to be installed in special miniaturized temperature place with narrow pipeline, bending and rapid response required.

Feature

1.Short thermal response time, reducing dynamic error

2. Can be bending installation

3.Huge range

4.High mechanical strength, slight, fast thermal response, good resistance to shock and pressure performance;

Working Principle

The two electrodes of metal sheathed thermocouple are made of different material conductors. When there is temperature difference between the measuring and reference junction, it will generate thermal EMF. And so the meter will show corresponding thermal temperature value of EMF.

Specification

1.Test Quality Standard: IEC584, IEC1515, GB/T16839-1997, JB/T5582-91

2.Element wire Diameter:  Single: 2-8mm, Double:3-8MM or customized

3. Element:B,S,N,K,E,T,J, two linear

4. Measurement range:

K ( -50 ~ 1300°C ),  S ( -50 ~ 1700°C ),  T ( -200 ~ 350°C ) ,  E ( 0 ~ 800°C )

J ( 0 ~ 1000°C ),    B ( 300 ~ 1800°C ),  N ( 0 ~ 1300°C )

Order Code

1. Item No.:KH203
2. T.C. Element:B,S,N,K,E,T,J
3. Mounting fixed thread:M12x1, M16x1, M22x1, M27x1, M33x1 or customized
4. Protector tube diameter:3-8mm, 8-16mm or customized
5. Protector tube material: 304,
6. Accuracy: Class A, Class B
7. Temperature Range:-200°C~+600°C
8. Length or insert length(probe)

Eg: If Armored T.C., K,Class A,mounting sleeve thread,Protector tube GH304, Length: 450mm,Insert length: 300mm.

So KH203,K,LxI=450x300,Class A,Protector tube GH304.

As a proffesional manufacturer, we can supply good quality and performance goods, and service on temperature sensor, pt100, T.C.,: K,S,T,N,J,N RTD,
