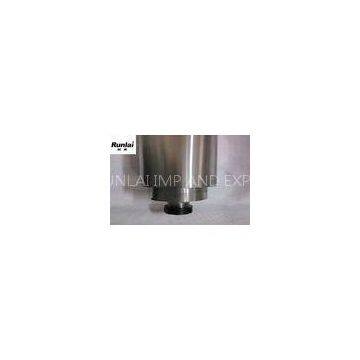

Low Rotating Speed High Torque 3.5kw High Frequency Machine Tool Spindles 110-9-21Z

Low Rotating Speed High Torque 3.5kw High Frequency Machine Tool Spindles 110-9-21Z

Technical support:

we have a professional technical support group for all of our items selling.if you have any? technical problem on our items.Pls feel free to contact with us.our technical support always beside you.
?

Applications:

Applicable scope: This product is suitable for Engraving machine or Engraving and milling machine and Lock?industry. It is mainly used for the circular carving and drilling and milling of the hardware, glassworks and woodworks.

Specifications:

Spindle mode:NYM110-9-21Z/3.5
Spindle parametric:??????????????????????????????????? Overall size(mm):
Frequency:800Hz?????????????????????????????????????? D:110
Rotating speed:9000-21000rpm???????????????????????? D1:85
Power:3.5Kw?????????????????????????????????????????? L:270
Voltage:380V?????????????????????????????????????????? L1:37
Electric current:8A????????????????????????????????????? L2:31
Connect mode:ER25
Tool holder’s diameter:1-16mm(Factory standard: 2 fillings)
Taper hole of spindle runout:≤0.003mm
Mandrel runout:≤0.008mm
Lubricating mode: grease
Cooling mode:water
Bearings mode:2*7007?? 2*7004
Weight:17.5KG

Description:

The GDZ High Speed Motor Spindle researched and developed by our company has low noise and high accuracy characteristics. It adopts two-pole to six-pole motor-driven system and the spindle is made by the nickel chromium molybdenum alloying steels through standard heat treatment program to reach the requirement of high accuracy and stability. Depth of parallelism within 0.002mm and Perpendicularity within 0.002mm are necessary. Balance test should use the computerized balancer machine to check the precise balance of spindle with full speed. Assemble and install area’s temperature is controlled by the thermostatic air conditioner within accurate fit tolerance. The assemble and install step is adjusted according to standard correction program when tightening the nut and is tightened by torque wrench within criterion, which make us not to correct the spindle by adjust the nut. Our high speed motor spindle utilizes hydraulic pull weights imported from German to measure the spindle’s pull accurately. The spindle leaving the factory is promised to run all for an integral test process so that the time of machine tool manufactors’ running time and machine tools delivery time could all be shortened.

Product features:

After-sale protection:

Bearing?warranty?last?for?half?a?year,Machine?quality?assurance?last?for?a?year.

Notes?for?Use?of?Motor?Spindle:

1, The spindle should rotate in the specific direction.
2, Please refer to the instruction manual when store the spindle.
3, Cooling the spindle by water cooling machine should control the temperature between 22 to 25.
4, The spindle using gas seal should dry and filter its gas source by the water oil separator before using. The atmospheric pressure is required to be 0.25MPa and filtering accuracy should be 5μm, or the bearing would be damaged.
