Introduction:

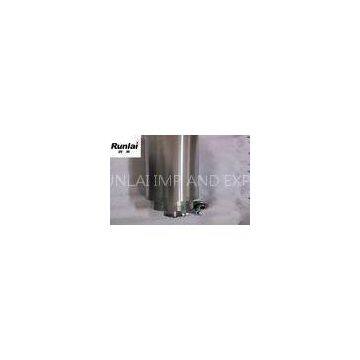

1.5kw water-cooling spindle motor and matching inverter for numerical engraving/grinding/milling PASS ISO9001 quality certification which means this item is the top quality item.

Specifications:

Spindle mode: NYM80-24Z/1.5

Spindle parametric:??????????????????????????????????? Overall size(mm):

Frequency: 400Hz?????????????????????????????????????? D: 80

Rotating speed: 24000rpm????????????????????????????? D1: 60

Power: 1.5Kw?????????????????????????????????????????? L: 210

Voltage: 220V?????????????????????????????????????????? L1: 10

Electric current: 6A????????????????????????????????????? L2: 26

Connect mode: ER16

Tool holder’s diameter: 0.5-10mm(Factory standard: 2 fillings)

Taper hole of spindle runout: ≤0.003mm

Mandrel runout: ≤0.008mm

Lubricating mode: grease

Cooling mode: water

Bearings mode: 2*7004?? 1*7002

Weight: 7.2KG

Description:

GDL80 series Motor Spindle is the automatic tools changing spindle designed by our company. It adopts four-pole motor-driven system and the ISO20 knife handle, could usually be used in the quick processing of different materials with Φ3~Φ10 blade from 24000rpm to 30000rpm. The multichamber protective measure including double-layer sealing device and air sealing conformation can efficaciously provide liquid from getting in and keep Motor Spindle working for a long time. The GMN import bearings and engine oil are used to ensure high performance of the spindle. Tool changing structure is advanced so that the signal and tool changing movement could be reliable and stable.

Applications:

Applicable scope: This product is suitable for Engraving machine or Engraving and milling machine and Lock industry. It is mainly used for the circular carving and drilling and milling of the matrix, spectacles and jewelry.

Competitive Advantage:

Notes for Use of Motor Spindle:

1, Motor spindle should be compatible with frequency converter. The specification and parameter setup of? frequency converter should match the rated parameters of spindle. If not, spindle would burn out.

2, Before using the water-cooled motor spindle, it must be ensured that the cooling system is working properly and working without cooling condition is strictly forbidden. Cooling water calculate by 1 liter per kilowatt minute. The minimum flow rate of cooling water is not less than 5 liters per minute. The cooling water pipe and the water nozzle connection must be reliable to prevent leakage.

3, Coolant must be clean and free of grease. Temperature should be controlled in 5 to 30 degrees. If the ambient temperature is above 30 degrees, the cooling medium must be forced to cool. Precision machining machine requires coolant temperature at 20 degrees positive or negative 2 degrees.
