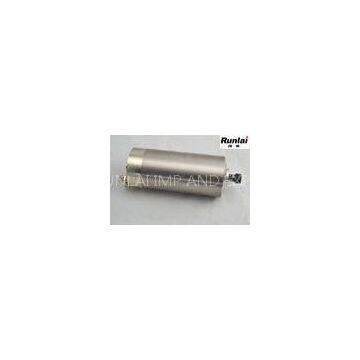

24000rpm 0.8KW Variable Frequency Motor for CNC Engraving / Metal Engraving

24000rpm 0.8KW Variable Frequency Motor for CNC Engraving / Metal Engraving

This?product?is?suitable?for?CNC?engraving,?metal?engraving?and?milling?machines,?high?speed

?grinding,?line?edition?sculpture,?woodworking,?advertising?engraving?machine,?cutting?machine,

?CNC?engraving?drilling?equipment.

Specifications:

Spindle?mode: NYM62-24Z/0.8

Spindle?parametric:????????????????????????????????????Overall?size(mm):

Frequency : 400Hz???????????????????????????????????????D: 62

Rotating?speed:?24000rpm??????????????????????????????D1: 47

Power: 0.8Kw???????????????????????????????????????????L: 200

Voltage: 220V???????????????????????????????????????????L1: 10

Electric?current: 5A??????????????????????????????????????L2: 23

Connect?mode: ER11

Tool?holder’s?diameter: 0.5-7mm(Factory?standard:?2?fillings)

Taper?hole?of?spindle?runout?: ≤0.003mm

Mandrel?runout?: ≤0.008mm

Lubricating?mode:?grease

Cooling?mode:?water

Bearings?mode: 2*7002???1*7001

Weight: 4KG

Description:

?It adopts four-pole motor driven system and the ISO20 knife handle, could usually be used in the quick processing of different materials with Φ3~Φ10 blade from 24000rpm to 30000rpm. The multichamber protective measure including double-layer sealing device and air sealing conformation can efficaciously provide liquid from getting in and keep Motor Spindle working for a long time. The GMN import bearings and engine oil are used to ensure high performance of the spindle. Tool changing structure is advanced so that the signal and tool changing movement could be reliable and stable.

Applications:

It?is?mainly?used?for?the?circular?carving?and?drilling?and?milling?of?the?matrixApplicable?scope:?This

?product?is?suitable?for?Engraving?machine?or?Engraving?and?milling?machine?and?Lock?industry. ,?spectacles?and?jewelry.

Competitive?Advantage:

????????? Infinitely?variable?speed?transmission?for?frequency?changer?with?wide?speed?range

????????? Low?noise,?little?vibration,?good?stability,?high?processing?precision

????????? Adopt?the?ceramic?core?Aerial?plug,?more?safe?and?reliable
