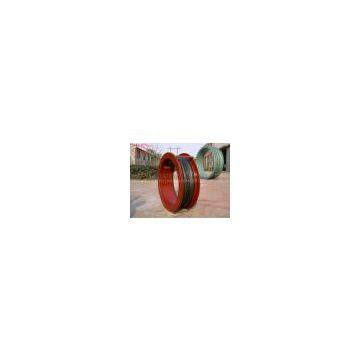

Duct Rubber Compenator (FVB)
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Liwei | Place of Origin | China | |
| Model Number | FVB |
Product Description
This product takes advantages of high flexibility and high air impermeability and medium resistance of rubber as well as compliance and heat resistance of glass— Fabric and is prepared at both ends with metal spool and flange in connection with wind machine and air duct, which can compensate the thermal expansion by the operation of air duct and multidirectional displacement. For better compliance of rubber and fabric and good sound absorption and vibration isolation, the noise and vibration passage can be reduced effectively in the operation of boiler, wind machine and air current. Because the main materials are rubber or fabric and fiber heat preservation materials of light weight without thrust in reverse and in no need of pipe supporting seat, a lot of materials are used so it has good heat resistance and corrosion resistance. In addition, rubber has better air impermeability absolutely without leakage and with lower price than metal compensator and import products.
Compensator Expansion Joints Duct Compensator
| 2. Application scope | ||
| Factory | Firepower power plant | Exhaust system of boiler and gas turbine |
| Petrochemical industry | Exhaust system of boiler and industrial furnace | |
| Fume extractor and desulfurization device | Warm and dry ventilating duct | |
| Metallurgy system | Fume and dust extraction of blast furnace, converter and burner | |
| Nuclear power plant | Air interchanger | |
| Cement industry | Various kilns, dust collector and fume treatment system | |
| Equipment | Dust collector | Entrance and exit of wind machines of all equipment |
| Dust catcher | ||
| Air heater | ||
| Washer | ||
| Induced draft fan | ||
| fan |
| 3. Material List | |||
| No. | Name | Material | Quantity |
| 1) | Flange | Flat steels, angles | 2 piece |
| 2) | Inner and outer layer rubbers | Natural rubber synthetic rubber | 1 piece |
| 3) | Reinforcing layer | Glue fiber fabrics | 2~4 layers |
| 4) | Sleeve | Q 235, A3 | 1 set |
| 4. Technical properties of the products | ||
| Compensation properties | FVB | FUB |
| Compensation length | ± 100mm | ± 90mm |
| Working pressure | ≤ 4500pa | ≤ 4500pa |
| Temperature range | -40centi-degree~300centi-degree | -40centi-degree~300centi-degree |
| Installation length | 300~450mm | 300~450mm |
| Tensile elongation variables | ≤ 15% | ≤ 15% |
| Sum of distances between both ends supports | ≤ 50m | |
| Distance between both ends slide supports | 2~4m | |
| Rubber properties | ||
| Tensile strength | ≥ 12mpa | ≥ 12mpa |
| Rupture elongation | ≥ 300% | ≥ 300% |
| Rupture elongation | ≤ 25% | ≤ 25% |
| Hardness | 58± 3centi-degree | 58± 3centi-degree |
| Hot air aging | 70centi-degree x72h | 70centi-degree x72h |
| Rupture elongation variables | ≥ 20% | ≥ 20% |
