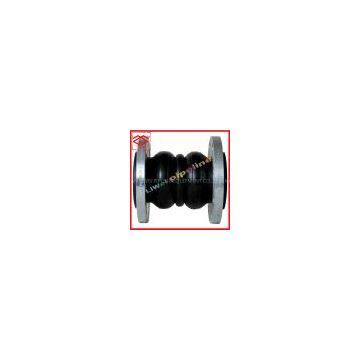

Double-Ball Rubber Exapnsion Joint (GJQ(X)-SF)

Brand Name	Liwei		Place of Origin	China
Model Number	GJQ(X)-SF

Flexible rubber joint:
Feature:
1. Small volume, light flexible, easy to install and maintain
2. It reduces structural noise transmission with strong shock absorption in servive.
3. It is capable of horizontal, axial and angular displacement with the restruction and flange non-parallelism.
4. The inner seamless high-pressure rubber joint independently developed by us prevents corrosive medium from etching the inner wall of the rubber joint in high temperature, acid and alkali and oil resistant pipeline, thereby extending its service life.
5. Applicable Media: Air, water, sea water, weak acidoil, alk aline, etc.
7. Body material list:
Rubber Body: Neoprene, EPDM, NBR, NB, CR, SBR, IIR, HNBR, SI, FLS, FPM, FFPM, ACM, with
Lining frame: Chinlon cord fabrics, Nylon cord Fabric or steel wire enhaced...
8. Flange material: Carbon steel, Q235, cast iron, stainless seel, 302, 304 etc.
9. Flange Standard: ANSI 150, DIN, JIS, UNI, BT, GB(China),
Such as: ANSI class125/150, DIN PN10/PN16, JIS5K/10K...
10. Flange surface: Galvanized
11. Pressure: PN6, PN10, PN16, ANSI150.
12. Character: Good characteristics of resistance of /oil/ heat/acid and alkali, high voltage, long-range elasticity, and the weight is light, etc...
