Home > Products > 10 Amp Relay > Power PCB 4 Pin 10 Amp Relay SPST Vending Machine 450 mW Coil Power

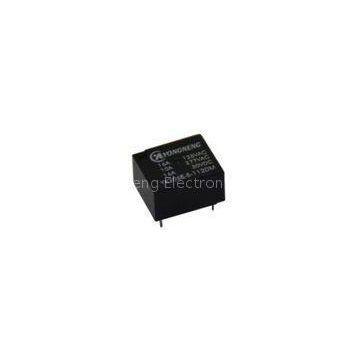

Power PCB 4 Pin 10 Amp Relay SPST Vending Machine 450 mW Coil Power
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Industrial PCB Power 10 Amp Relay , 24 Volt DC Relay SPDT Silver Alloy
-
Electromagnetic 10 Amp Power Relay HF13F 2/3/4 Pole UL for Washing Machine
-
PCB Power 10 Amp Relay 4 Pin 30 VDC SPST Silver Alloy for Electric Heater
-
Industrial 5A Single Pole Automotive Relay HF3FF UL 32g Vibration Resistance
-
Electric Heater 4 Pin 10 Amp 12 Volt Relay SPST ROHS 200 mW coil power
-
Heavy Duty 30A 40A SPDT 5 Pin 12 Volt Relay PCB Power Alloy Vending Machine
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
Power PCB 4 Pin 10 Amp Relay SPST Vending Machine 450 mW Coil Power
Description:?
Smaller size :18.4X15.2X10.2 mm ?
Rohs?and?Reach?Compliance
High?switching?capability:16A
Plastic?Sealed?Type?Available?
High sensitivity :450 mW coil power?
Applications:
Home?Appliance?
Office?machine
Vending machine
Air Conditioner?
Electric heater
Sepecifications :
PCB Power Relay?
Home Appliance Relay??
Electromagnetic Relay?
General Purpose Power Relay?
|
Model? |
YX206E |
|
Contact?Form |
1a |
|
Contact?Material? |
Silver?Alloy? |
|
Rated?Load |
10A/16A?277VAC 30VDC |
|
Max.Switching?Current |
16?A |
|
Max.?switching?voltage |
277VAC/30VDC |
|
Max.?switching?capacity |
2770VA |
CHARACTERISTICS?DATA
?
|
Insulation?Resistance |
1000MΩMin?at?500VDC |
|
Dielectric?Strength?Between?Open?Contacts |
1000VAC(50/60Hz?for?one?minute) |
|
Between?Contacts?and?coil |
2500VAC(50/60Hz?for?one?minute) |
|
Operate?Time |
8 ms |
|
Release?Time |
5 ms |
|
Temperature?Range |
-40℃to+85℃ |
|
Shock?Resistance |
Operating?Extremes:?10G |
|
Damage?Limits:?100G |
|
|
Vibration?Resistance |
10-55Hz,?1.5mm |
|
Weigh |
Approx 5.5?g |
|
Safety?Standard |
Rosh and Reach Compliance |
Dongguan Yongneng Electronics is?a medium-sized factory who specializes in RELAY field for 10
YEARS .?We produce Signal Relay , PCB power relay and automotive relay and so on .?
