Product Details
| Brand Name | TTI | Place of Origin | China | |
| Model Number | FOC-GYTS |
Product Description
Certification:ROHS, SGS

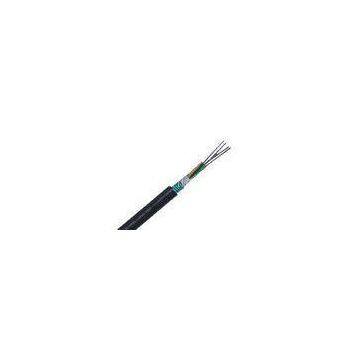

Multimode GYTS Outdoor Optic Cable for Direct Buried , Duct , Aerial
Quick Detail:
Amoured: steel tape Corrugated steel Center Strngth member Mode: Single mode, Multimode Fiber core: 2~144 cores Application: Duct and Aerial, Direct Buried Jacket: PE materialDescription:
GYTS steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member.
Features:
Good mechanical and temperature performance High strength loose tube that is hydrolysis resistant Tube filling compound- gel PBT-made loose tubes Cable filling compound PSP, PE sheath metallic central strength memberApplication:
Usable in Duct or Aerial Long-haul communication system Junction communication system Local area network systemsTechnical Parameters:
| Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter (mm) |
Cable Weight (kg/km) |
Tensile Strength (N) | Crush Resistance (N/100mm) |
Bending Radius (mm) |
| Long/Short Term | Long/Short Term |
Static/ Dynamic |
||||||
| GYTS-2~6 | 2~6 | 1 | 4 | 10.2 | 116 | 600/1500 | 300/1000 | 10D/20D |
| GYTS-8~12 | 8~12 | 2 | 3 | 10.2 | 116 | 600/1500 | 300/1000 | 10D/20D |
| GYTS-14~18 | 14~18 | 3 | 2 | 10.2 | 116 | 600/1500 | 300/1000 | 10D/20D |
| GYTS-20~24 | 20~24 | 4 | 1 | 10.2 | 116 | 600/1500 | 300/1000 | 10D/20D |
| GYTS-26~30 | 26~30 | 5 | 0 | 10.2 | 116 | 600/1500 | 300/1000 | 10D/20D |
| GYTS-32~36 | 32~36 | 6 | 0 | 10.6 | 129 | 1000/3000 | 300/1000 | 10D/20D |
| GYTS-38~48 | 38~48 | 4 | 1 | 11.2 | 141 | 1000/3000 | 300/1000 | 10D/20D |
| GYTS-50~60 | 50~60 | 5 | 0 | 11.2 | 141 | 1000/3000 | 300/1000 | 10D/20D |
| GYTS-62~72 | 62~72 | 6 | 0 | 12 | 159 | 1000/3000 | 300/1000 | 10D/20D |
| GYTS-74~84 | 74~84 | 7 | 1 | 13.6 | 209 | 1000/3000 | 300/1000 | 10D/20D |
| GYTS-86~96 | 86~96 | 8 | 0 | 13.6 | 209 | 1000/3000 | 300/1000 | 10D/20D |
| GYTS-98~108 | 98~108 | 9 | 1 | 15.4 | 232 | 1000/3000 | 300/1000 | 10D/20D |
| GYTS-110~120 | 110~120 | 10 | 0 | 15.4 | 232 | 1000/3000 | 300/1000 | 10D/20D |
| GYTS-122~132 | 122~132 | 11 | 1 | 17.2 | 280 | 1000/3000 | 300/1000 | 10D/20D |
| GYTS-134~144 | 134~144 | 12 | 0 | 17.2 | 280 | 1000/3000 | 300/1000 | 10D/20D |
Shipping:
Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.) Airport to Airport: by air Seaport to Seaport: by sea (our location Shenzhen is a seaport.)Contact Us
