GYTA Outdoor Armoured 12 core Fiber Optic Cable for Duct
Negotiable
/ Case
1 Case(Min.Order)
- 0 Case / Cases per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Low Insertion Loss FBT Fiber Optic Splitter for CATV System , 1310 & 1550 nm
-
Single mode / Multimode Fiber Optic Loopback with SC / LC Connector
-
LSZH Simplex / Duplex optic Pigtail for FTTH CATV Network , RoHS
-
Duplex Fiber Optic Connector , Green SC APC Fiber Connector for Test
-
Zinc Alloy Green Single Mode SC SM Fiber Connectors for CATV LAN Network
-
12core , 24core , 48core FC Fiber Optic Pigtail for Optical access network
Product Details
| Brand Name | TTI | Place of Origin | China | |
| Model Number | FOC-GYTA |
Product Description
Certification:ROHS, SGS

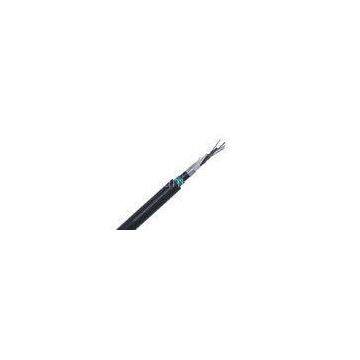

GYTA Outdoor Armoured 12 core Fiber Optic Cable for Direct Buried
Quick Detail:
Amoured: steel tape Fiber core: 2~144 cores Application: Duct and Aerial Jacket: PE material, black color Corrugated steel Center Strength member Mode: Single mode, MultimodeDescription:
GYTA Aluminum Polyethylene Laminate (APL) is applied around the cable core, which isfilled with the filling compound to protect it from water ingress.
Features:
Good mechanical and temperature performance High strength loose tube that is hydrolysis resistant Soft,flexible,easy to splice,and with big capacity date transmission Meet various requirements of market and clientsApplication:
Junction communication system Local area network systems Usable in Duct or Aerial Long-haul communication systemTechnical Parameters:
| Cable Type | Fiber Count | Tubes | Fillers | Cable Diameter (mm) |
Cable Weight (kg/km) |
Tensile Strength (N) | Crush Resistance (N/100mm) |
Bending Radius (mm) |
| Long/Short Term | Long/Short Term | Static/Dynamic | ||||||
| GYTA-2~6 | 2~6 | 1 | 4 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
| GYTA-8~12 | 8~12 | 2 | 3 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
| GYTA-14~18 | 14~18 | 3 | 2 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
| GYTA-20~24 | 20~24 | 4 | 1 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
| GYTA-26~30 | 26~30 | 5 | 0 | 9.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
| GYTA-32~36 | 32~36 | 6 | 0 | 10.2 | 104 | 1000/3000 | 300/1000 | 10D/20D |
| GYTA-38~48 | 38~48 | 4 | 1 | 11 | 117 | 1000/3000 | 300/1000 | 10D/20D |
| GYTA-50~60 | 50~60 | 5 | 0 | 11 | 117 | 1000/3000 | 300/1000 | 10D/20D |
| GYTA-62~72 | 62~72 | 6 | 0 | 11.5 | 126 | 1000/3000 | 300/1000 | 10D/20D |
| GYTA-74~84 | 74~84 | 7 | 1 | 13.4 | 154 | 1000/3000 | 300/1000 | 10D/20D |
| GYTA-86~96 | 86~96 | 8 | 0 | 13.4 | 154 | 1000/3000 | 300/1000 | 10D/20D |
| GYTA-98~108 | 98~108 | 9 | 1 | 14.8 | 185 | 1000/3000 | 300/1000 | 10D/20D |
| GYTA-110~120 | 110~120 | 10 | 0 | 14.8 | 185 | 1000/3000 | 300/1000 | 10D/20D |
| GYTA-122~132 | 122~132 | 11 | 1 | 16.9 | 228 | 1000/3000 | 300/1000 | 10D/20D |
| GYTA-134~144 | 134~144 | 12 | 0 | 16.9 | 228 | 1000/3000 | 300/1000 | 10D/20D |
Shipping:
Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.) Airport to Airport: by air Seaport to Seaport: by sea (our location Shenzhen is a seaport.)Contact Us
