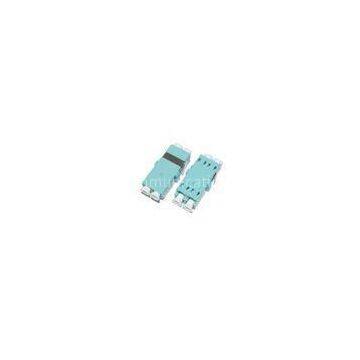

LC OM3 Optical Fiber Coupler for Test Network , Aqua Duplex Adapter
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
CATV High Return Loss SC SM Fiber Optic Adapter with Ceramic Sleeve
-
ST / UPC - ST Indoor Armoured Fiber Optic Patch Cord with Blue , LSZH jacket
-
FC Fiber Patch Cord with Yellow Cable , SM , MM Fiber Optic
-
LSZH Jacket Duplex SC Fiber Optic Patch Cord for Optical access network
-
GYXTW Unitube Telecommunication fiber optic with PE jacket , Iight - armoured
-
CATV SM MM Standard Fiber Ferrule for FC LC SC ST connectors
Product Details
| Brand Name | TTI | Place of Origin | China | |
| Model Number | FOA-LC |
Product Description
Certification:ROHS, SGS
?LC OM3 Duplex Fiber Adapter with High Return Loss , Ceramic Sleeve
Quick Details
Type: LC/UPC Mode: OM3, Multimode Structure: with flange, without flange Sleeve: Ceramic sleeve Color: Aqua color Fiber core: Duplex, SC shapeFeatures:
Standardization and Uniformization of Metal Casing Good repeatability, interchangeability and environmental stability Zirconia or Bronze Sleeve Precision mechanical dimension Low Insertion Loss, high Return lossApplication:
Equipment Test Local Area Network Optic instrumentation CATV system, Optic LAN Telecommunication Networks Fiber optic communication network Optical Broadband Access NetworkSpecification:
| Parameter | Unit | LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, | MTRJ | E2000 | ||||||
| SM | MM | SM | MM | SM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | APC | ||
| Insertion Loss (Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
| Repeatability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
| Durability | Time | ＞1000 | ＞1000 | ＞1000 | ||||||
| Operating Temperature | ℃ | -40~75 | -40~75 | -40~75 | ||||||
| Storage Temperature | ℃ | -45~85 | -45~85 | -45~85 |
Ordering Information:
SC/UPC-SC/UPC-SM-SX
Step 1: Connector type: FC, SC, LC, ST, MTRJ, MU, MPO
Step 2: Ferrule End-face: PC, UPC, APC
Step 3: Type: Single-mode, Multimode (MM, OM3, OM4)
Step 4: Mode: Simplex, Duplex
Step 5: Sleeve: Ceramic, Bronze
Step 6: Housing material: Plastic, Metal
Packing:
25pcs per PE bag with stick label (we could add customer\'s logo in the label.)
Shipping:
Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.) Airport to Airport: by air Seaport to Seaport: by sea (our location Shenzhen is a seaport.)Our service:
Standard and customized OEM products from small to large quantity are welcome. Compliance with global environmental industry with RoHS and SGS standards. All products are 100% fully tested by our technical expertise.Contact Us
