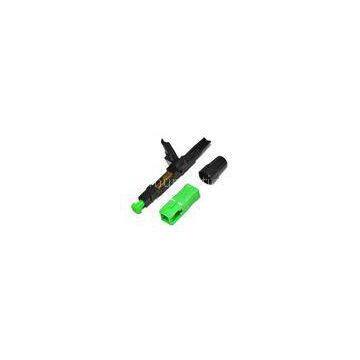

UPC APC SC Fast Singlemode Fiber Optic Connector with Fiber Inside
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
FC Plastic Fiber Optic Connector for Data Transmission , 0.9mm / 2.0mm / 3.0mm
-
Simplex Duplex SCLC Fiber Optic Flange with Precision Dimension
-
Zinc alloy Female / Male Fiber Optic Adapter for CATV System / LAN & WAN
-
ROHS , SGS Hybrid Multimode Fiber Optic Adapter with High RL / Low IL
-
LC OM3 Quad optical fiber adapter for Optic LAN , Blue / Beige / Aqua
-
Pluggable SC Simplex Fiber Optic Adapter with Bronze Sleeve / Plastic housing
Product Details
| Brand Name | TTI | Place of Origin | China | |
| Model Number | QAC-SCU |
Product Description
Certification:ROHS, SGS
UPC APC SC Fast Singlemode Fiber Optic Connector with Fiber Inside
Description:
SC quick assembly connector has easy assembly and excellent stability.
Quick Detail:
Name: SC Fast Connector Connector: FC, LC, SC Mode: Singlemode and Multimode Ferrule end-face: UPC, APC Ferrule size: 2.5mm Structure: Pre-polished, Un-polishedFeature:
No special assembling tool Easy for assembling with mechanical splice and no polishing Minimize the defect rate by features of removal and reusable. Easy for learning technology by a simple assembling method (within 1 and half minutes)Application:
Optical network maintaining and repair. Local area network environment of connection. Terminal connection-leg of FTTH optic network. Optical fiber plug-and socket panel. Fiber optic distribution frame.Specification:
| Article | value |
| Insertion loss | ≤0.3 (max 0.4) |
| Return loss | ≥60dB |
| Connector type | SC/APC |
| Cable | drop 3.0mm / flat 2x3mm cable |
| Fiber clamping force | ≥3N |
| Tensile Strength | Typical ≥40N (Max 50N) |
| Online tensile strength 20N | IL variation (≤0.2dB) RL variation (≤5dB) |
| Working Temperature | -40℃ ~ +75℃ |
| Can be repeatedly used | Possible |
Shipping:
Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.) Airport to Airport: by air Seaport to Seaport: by sea (our location Shenzhen is a seaport.)Contact Us
