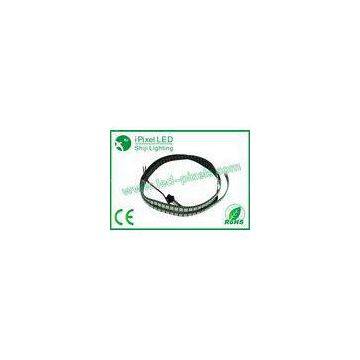

Self Adhesive DimmableWs2812B LED Strip Waterproof For Shopping Malls

Self Adhesive DimmableWs2812B LED Strip Waterproof For Shopping Malls

Datesheet?

Description ?

1. It is the most brightness and the highest density?flexible led strips built with?144 pcs 5050 RGB LEDs per meter, the controller chip WS2811 IC chip?inserted in?the 5050 RGB 4 pin?LED diode?(we call it as ws2812B LED diode), which is kind of cool, the chip only uses a single pin for input and a single pin for output , that means only?Date pin for signal transfer , no clock pin using .

2.?These LED strips are even more fun and glowy. There are 144?RGB LEDs per meter, the highest density LEDs?, the?most brightness strips,?each LED is?individually controlled ! ?this is the digitally-addressable type of LED strip. You can set the color of each LED\'s red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel).?

3. The strip is made of flexible PCB material, ?You can cut this stuff pretty easily with wire cutters, there are cut-lines every 6.94mm (1 LED each) . we commonly produce it 1meter per roll ,?as it is the highest density strip lights and?there exsit big voltage drop once the length?longer than 1meters ?.

4. They come in 1?meter reels with a?3-pin JST SM connector?on each end and separated power/ground wires.?

5. You wanted?less noticable strip color?- this strip has white-colored?and black-colored?flex PCB, which will be less visible against white-painted or black-painted?walls.??

6. You can controlled by Arduino Uno/Mega microcontroller ,?DMX controller (Madrix Software) , SD controller (LEDEdit Software?) and etc?
?

Technical specs

1.?14mm?wide,?4mm?thick with silicon tube casing on waterproof, 6.94mm long per segment

2. 144?LEDs per meter

3. Maximum 5V @ 60mA draw per 6.94mm?strip segment (all LEDs on full brightness)

4. 5VDC power requirement (do not exceed 6VDC) - no polarity protection

5. 1 integrated RGB LEDs per segment, individually controllable

6. LED wavelengths: 630nm/530nm/475nm

7. Connector: 3-pin JST SM

8. We currently produce?this product with the WS2812B 4-pin chip LED installed. Some company?versions may have come with the WS2812S 6-pin LED. Both B and S LEDs can be chained together. The \'B chip type adds additional polarity protection and is the same brightness as the \'S type. ??

FAQs

1.?How is SHIJI / Ipixel LED ??

SHIJI?/ Ipixel LED is a?manufacturer who focus on full color LED pixel lights and have 5 years experience in pixel led market .

b.Sales department over 12 people , and most customers come from Europe , North America and Mexico .

2. What\'s the certificates do you have ??

100% items have the CE ,RoHS certificates .

3. Can you provide the ODM or OEM service ??

Yes , we had rich experience in OEM or ODM service based on?customer\'s different requirments
