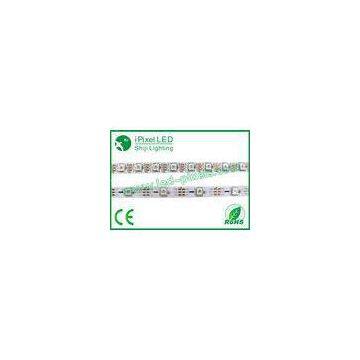

Magic Color Brightest Ws2812B LED Strip Low Voltage Epistar Chip For Christmas 5M

Magic Color Brightest Ws2812B LED Strip Low Voltage Epistar Chip For Christmas 5M

Datesheet?

Description ?

1. It is the new well know WS2812B LED strips which IC chip inserted in 5050 RGB LED diode?.?It is a?high density flexible addressable controlled?led strips, the controller chip WS2811 IC built in?the 5050 LED lamp??(we named this LED?as WS2812B LED), which is kind of cool, the chip only uses a single pin for input and output signal?, that means only?Date pin for signal transfer , no clock pin using?.

2.?These LED strips are fantastic application. There are 60pcs?RGB 5050 LEDs per meter, and you can control each LED individually! ?this is the addressable-digital?type of LED strip. You can set the color of each LED\'s red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel). it is wonderful for building a flexible?led display .

3. The strip is made of flexible PCB material, ?You can cut this stuff pretty easily with wire cutters, there are cut-lines every 1.7cm (1 LED each). ?Of course, you can also connect strips together to make them longer (Please dont over 5meter length/ 300leds , as there exsit big voltage drop once longer than 5meters??)?

4. They come in 5?meter reels with a?3-pin JST SM connector?on each end and extra separated power/ground wires for inputting wattage. Of course , customized length is wo rkable too?.

5. You may wanted?less noticable strip color?- yes ,they?can do it ,?this strip has white-colored?and black-colored flexible?PCB board, which will be less visible against white-painted or black-painted?walls.??

6. You can controlled by Arduino Uno/Mega microcontroller ,?DMX controller (Madrix Software) , SD controller (LEDEdit software?)and etc .

7. You may worried about flexible strip outdoor using , and you are still not find the high density addressable LED rigid bar , now the ws2812b leds can do it , we also produce it as addressable ws2812b led rigid bar 60leds/m , even the 144leds/m .

Technical specs

1.?12.5mm?wide,?4mm?thick with silicon tube casing on waterproof, 16.7mm long per segment

2. 60 LEDs per meter

3. Maximum 5V @ 60mA draw per 16.7mm?strip segment (all LEDs on full brightness)

4. 5VDC power requirement (do not exceed 6VDC) - no polarity protection

5. 1 integrated RGB LEDs per segment, individually controllable

6. LED wavelengths: 630nm/530nm/475nm

7. Connector: 3-pin JST SM

8. We currently produce?this product with the WS2812B 4-pin chip LED installed. Some company?versions may have come with the WS2812S 6-pin LED. Both B and S LEDs can be chained together. The \'B chip type adds additional polarity protection and is the same brightness as the \'S type. ??

FAQs

1.?How is SHIJI / Ipixel LED ??

a. SHIJI?/ Ipixel LED is a Shenzhen?manufacturer who focus on full color LED pixel lights and have 5 years experience in pixel led market .

b. Sales department over 12 people , and most customers come from Europe , North America and Mexico .

2. What\'s the certificates do you have ??

100% items have the CE ,RoHS certificates .

3. Can you provide the ODM or OEM service ??

Yes , we had rich experience in OEM or ODM service based on?customer\'s different requirments
