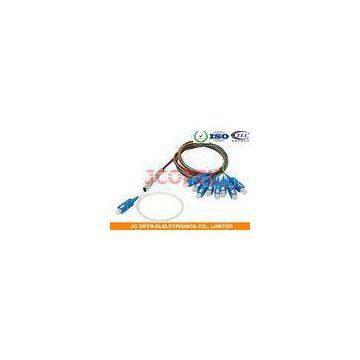

FTTH Fiber Optic Splitter / PON EOC Micro 1x8 Optical Splitter Telcordia 1221
- T/T L/C D/P D/A
- 7 days
You May Like
-
1X32 Fiber Optic Splitter / Bare Fiber PLC Splitter for Optic En - closure
-
Fiber Splitting CATV Optical Spliter 1X8 Low Insertion Loss PKC Splitters
-
Home EPON 1x64 Fiber Optic Splitter Blocklees PLC 50dB Returm Loss
-
Passive Optical Splitter 1 In 16 Out ODF Black Box With SC PC Connector
-
8 Sec. Light Weight Splice Fiber Optic Cable / Fibre Optics Splicing FTTH Assembly
-
Aluminum 24 Core Fiber Optic Distribution Panel Frames Optical Rack mountSC Simplex Adapter
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
FTTH Fiber Optic Splitter / PON EOC Micro 1x8 Optical Splitter Telcordia 1221
Planar light-wave circuit (PLC) splitter is fabricated using silica optical wave-guide technology and offers a low cost solution for optical signal distribution. It has low insertion loss and polarization dependent loss, miniature size, wide operating wavelength and temperature range, super reliability, and excellent channel uniformity. JC Opto-electronics provides 1*N and 2*N series of splitters. The bare fiber, 0.9mm, 2.0mm, 3.0mm pigtails in Blockless module, Plastic ABS box, Cassette card, LGX metal box, 1U rack mount packages are available to meet your different installation requirements.
Features
Low insertion loss and PDL High channel number Compact size High reliability Wide operating wavelength Excellent channel uniformity Telecordia GR-1221 and GR-1209Applications
Fiber to the Home (FTTH) Fiber to the Point (FTTX) Passive Optical Network (PON) LAN, WAN and Metro Networks CATV Networks Testing Equipment Other applications in fiber optic systems?
1xN Series PLC Splitter Data Sheet (T=23℃)
|
Parameter |
Port Configuration |
||||||
|
1X2 |
1X4 |
1X8 |
1X16 |
1X32 |
1X64 |
||
|
Fiber Type |
G652D, G657A1, G657A2 or OEM |
||||||
|
Operating Wavelength(nm) |
1260~1650 |
||||||
|
Insertion Loss(dB) |
Typical |
3.9 |
7.2 |
10.3 |
13.6 |
16.7 |
20.2 |
|
Max |
4.1 |
7.4 |
10.5 |
13.8 |
16.9 |
20.4 |
|
|
Loss Uniformity (dB) |
Max |
0.5 |
0.6 |
0.8 |
1 |
1.5 |
1.8 |
|
Return Loss (dB) |
Min |
50 |
50 |
50 |
50 |
50 |
50 |
|
PDL (dB) |
Max |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
|
Directivity (dB) |
Min |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent Loss(dB) |
Max |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.8 |
|
Temperature Dependent Loss |
Max |
0.5 |
0.5 |
0.5 |
0.8 |
0.8 |
1.0 |
|
Operating Temperature (°C) |
-40~+85 |
||||||
|
Storage Temperature (°C) |
-40~+85 |
||||||
|
Packaging Size(mm) |
Bare |
40x4x4 |
40x4x4 |
40x4x4 |
50x7x4 |
50x7x4 |
60x12x4 |
|
Blockless |
60x7x4 |
60x7x4 |
60x7x4 |
60x12x4 |
80x20x6 |
100x40x6 |
|
|
ABS |
90x20x10 |
