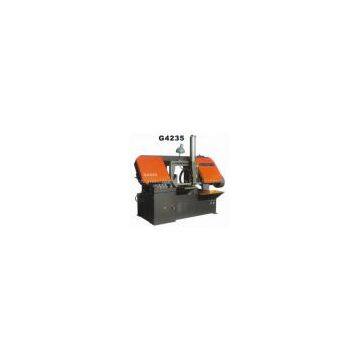

metal band saw machine

Ⅰ  Machine features and application scope

It is a kind of horizontal structural double band sawing machine which enable feeding carriage moving horizontally. Main transmission system use double sawing wheel transmission and double housing guide rails against the conventional. Material feeding and work-piece adopt hydraulic transmission system.

This machine is mainly used in cutting the large size ferrous metal in the mechanical industrial such as round bar, square bar and others. Because cutting tool is double metal band saw blade which features narrow incision, low power consumption and small spillage of material. It is national key scientific and technological promotion project. This machine is also the distinctive sawing equipment.

Ⅱ    Machine main technical parameter

Max. process scope(mm): round barΦ350

Square bar 350X350mm

Saw band specification(mm): 4250×34×1.1(L×W×T)

Saw wheel dia. (mm): Φ505

Process speed (m/min): Five grades 25  35  50  65  83

Feeding speed (m/min): stepless speed variation

Machine power:

Main transmission motor 3KW

Hydraulic motor 0.55KW

Cooling pump motor 40KW

Overall dimension of machine(mm):2100×1050×1560(L×W×H)
