Home > Products > DC Motion Sensor > 24Vdc input Dry contact Microwave motion sensor MC017D, CE & R&TTE approval

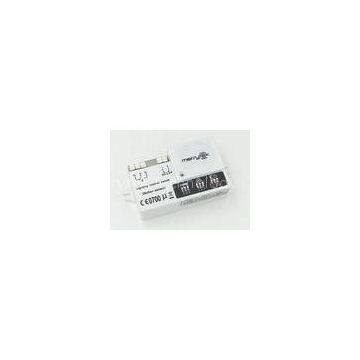

24Vdc input Dry contact Microwave motion sensor MC017D, CE & R&TTE approval
USD $4 - $5
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
250mA - 700mA Dali Dimmable LED Driver 30W , Over Temperature Protection
-
Power Free Dry Contact Motion Sensor MC016D 5.8GHz 75MHz , ISM Wave Band
-
Multi - function Dimmable LED Driver For Workshop And Warehouse Light / HF Sensor
-
IP20 Daylight Harvesting Sensor , Constant Current Dimmable Led Driver MC003V
-
Waterproof 50 Watt 1-10V Dimmable LED Driver 850mA For Down Light
-
IP20 Indoor Dali 500mA Dimmable LED Driver 30 Watt 16 - 58Vdc 103x67x22mm
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
24Vdc input Dry contact Microwave motion sensor MC017D, CE & R&TTE approval
Description
? DC 24V input ? Dry contact Esp. for solar energy garden lamp and industrial application ? sensor and load are in different power supply system, voltage free ? Dry contact works in normally closed mode and normally open mode ? ISM Band 5.8GHz ? Automatic switching based on motion and ambient light level ? 3 pole relay design, user can choose normally open mode or normally closed mode according to different application ? Sensor data can be simply set via DIP switch. ? Wide detection area, range up to 16m in diameter. ? The sensor can be detected through plastic, glass and thin non-metal materials. It supplies dry contacts in normally closed mode and normally open mode. Dry contact means open or close relay without any current or voltage. It is perfect for the solar energy garden lamp or industrial control application where requires isolation between motion signal and power supplyOn-off function?
Specifications:
|
Operating voltage |
24Vdc |
|
Rated load |
Power free |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(D x H) |
16m x 6m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) 360°(ceiling installation) |
|
IP rating |
IP20 |
|
Operation Temperature |
-20℃~50℃ |
|
Hold time |
10s/ 30s/ 90s /3min/20min / 30min |
|
Detection sensitivity |
10% / 25% / 50% / 75% / 100% |
|
Daylight Sensor |
5lux / 10lux / 30lux / 50lux /Disable |
|
Life time |
50000 hours |
|
Guaranty |
5 years |
Wiring:
Applications:
Stairwell, Corridor, Balcony, Pathway, etc.
