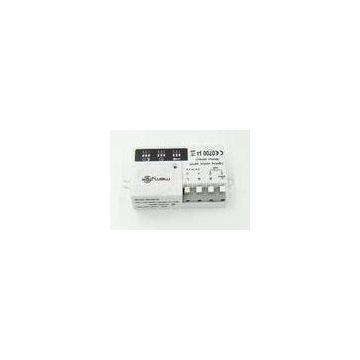

Unique 15M Range Microwave Motion Sensor With 4 - Pole Press - In Terminal
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Compact Version Constant Current Dimmable LED Driver 8W 500mA Customized
-
12W Integrated Sensor LED Driver 270mA Output Current Selectable By DIP Switch
-
3 Step Dim 1-10V Microwave Light Motion Sensor For Pathway , 50000 Hours Life Time
-
IP20 Detachable DC Motion Sensor , Detection Sensitivity 50/ 25/ 75
-
5.8GHz ISM band 200w DC Motion Sensor , Wide Detection Area 16 Meter
-
Auto Switch Off And Dimming MW Sensor Daylight Harvesting Sensor CE R&TTE
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
15M range 220-240Vac Input ON-OFF Microwave Motion Sensor MC001S with CE approval?
Description:
1.?Automatic switching based on motion and ambient light level.
2.?Unique design for wall mounting application .
3. 4-pole press-in terminal (L, N, N,L′),easy assembly.
4.?5.8GHz high frequency microwave(C-Band license-free operation)
5.?Zero-crossing point operation helps protect the sensor against in-rush current.
6. Detection area, time delay and daylight threshold can be precisely set via DIP switch.
7.?MC001S is an innovative motion sensor, supplies a simple energy-saving solution to use light only when and where you need it. It is special for wall mounting ,with long detection range up to 15m at 6m mounting height .
Function:
ON-OFF function?
Detection Pattern:
Specifications:
|
Operating voltage |
220-240Vac, 50Hz |
|
Rated load |
400W (inductive), 1000W (resistive) |
|
HF system |
5.8GHz±75MHz, ISM wave band |
|
Power consumption |
≤0.5W(standby), <1W(operation) |
|
Transmitting power |
<0.5mW |
|
Detection zone Max.(R x H) |
15m x 6m |
|
Motion detection |
0.5~3m/s |
|
Detection angle |
150°(wall installation) |
|
IP rating |
IP20 |
|
Operation temperature |
-30℃~70℃ |
|
Hold time |
5S/3min/10min/20min/30min/disable |
|
Detection sensitivity |
25％/50％/75％/100％ |
|
Daylight sensor |
5lux / 10lux / 30lux / 50lux / Disable |
|
Life time |
50,000 hours |
|
Guaranty |
5 years |
Wiring:
Applications:
Stairwell, Corridor, Balcony, Pathway, etc
