Home > Products > gps antenna > GPS Internal Antenna LPIG0901

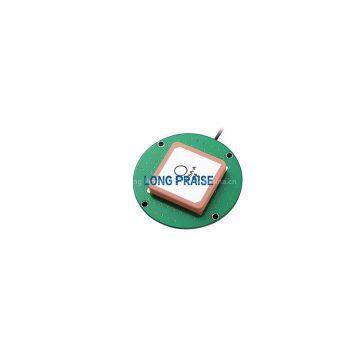

GPS Internal Antenna LPIG0901
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | lpantenna | Place of Origin | China | |
| Model Number | LPIG0901 |
Product Description
Item
Specifications
Antenna
Center Frequency
1575.42±3MHz
Band Width
CF±4MHz
Polarization
RHCP
Gain
2dBi（Zenith）
V.S.W.R
＜1.5
Impendance
50Ω
Axial Ratio
3dB（max）
Dimension
18*18*4mm
LNA
Gain
20±2dB
Noise Figure
＜1.3
Supply Voltage
3V DC
Current Consumption
9mA
V.S.W.R
＜2.0
Mechanical
Cable
RF1.13/RF1.37 or others
Connector
IPEX or others
Mounting Method
Screw
Environmental
Operating Temperature
-40℃~+85℃
Relative Humidity
Up to 75%
Vibration
10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly
ROHS Compliant
