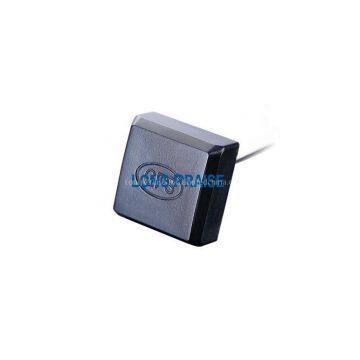

External GPS Antenna LPG007
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | lpantenna | Place of Origin | China | |
| Model Number | LPG007 |
Product Description
Item
Specifications
Antenna
Center Frequency
1575.42±1MHz
Band Width
CF±5MHz
Polarization
RHCP
Gain
5dBic(Zenith)
V.S.W.R
<1.5
Impedance
50Ω
Axial Ratio
3dB(max)
Dimension
31*39*14mm
LNA
Gain
28±2dB
Noise Figure
<1.5
Filter Insertion Loss
<3dB
Ex-band Attenuation
12dB CF+50MHz/16dB CF-50MHz
Supply Voltage
2.2~5V DC
Current Consumption
5~15mA
V.S.W.R
<2.0
Mechanical
Cable
RG174
Connector
SMA/MCX/FAKRA or others
Radome Material
ABS
Mounting Method
Screw
Environmental
Operating Temperature
-40℃~+85℃
Relative Humidity
Up to 95%
Vibration
10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly
ROHS Compliant
