Home > Products > AHD CCTV Camera > Night Vision AHD CCTV Camera 2MP Automatic Electronic Shutter Function

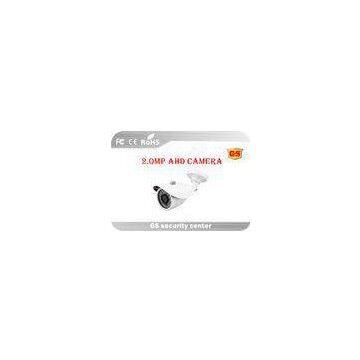

Night Vision AHD CCTV Camera 2MP Automatic Electronic Shutter Function
- T/T L/C D/P D/A
- 7 days
You May Like
-
ONVIF 4 Megapixel IP Camera H.265 , Video Security Camera System
-
DC 12V IP66 Metal Megapixel WIFI IP Camera CMOS FOR Factory / Parking Lot
-
GS / OEM Bullet Type 2 Megapixel IP Camera Waterproof Manualfocus
-
Convenient High Megapixel IP Camera Wireless Support Multiple Web Browsers
-
Ultra Low Light Audio 1.3MP Closed Circuit TV Camera Indoor For Factory / Shopping Center
-
IR CUT Filter Switching 720P AHD CCTV Camera 1MP , Home CCTV Camera
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
Night Vision AHD CCTV Camera 2MP Automatic Electronic Shutter Function
Description:?
using high-performance sensor, image clarity, and delicate; Support IR-CUT filter switching, to achieve day and night monitoring; analog HD 1080P @ AHD video output; the transmission distance over 500 meters; need access to the back-end AHD DVR; support for ultra-low-light; support for automatic electronic shutter function, adapt to different monitoring environment; meets IP66 waterproof design, high reliability;Product details:
|
Model |
AHC-EJM5120PL-H-IR1 |
|
Sensor |
1/2.7” OV2710 CMOS |
|
Signal System |
1080P@AHD |
|
Effective Pixels |
PAL:1920*1080 |
|
Minimum Illumination |
Color: 0.1Lux @(F1.2,AGC ON),0 LUX with IR |
|
B&W: 0.01 Lux @ (F1.2,AGC ON),0 LUX with IR |
|
|
Shutter |
1/50(1/60)s to 1/10,000s |
|
Day and Night Function |
Support IR-CUT |
|
Lens Type |
HD professional lens 3.6mm,6mm |
|
Lens Parameters |
M12 |
|
Video output |
1Vp-p Composite Output(75Ω/BNC) |
|
Temperature and Humidity |
﹣10℃ ~ 60℃, ?humidity is less than 90% (no condensation) |
|
Power supply |
DC12V±10% |
|
Consumption |
6W MAX |
|
Protection class |
IP66 |
|
Dimension |
￠63mm*173.6mm |
|
Weight |
300g |
Applications:?
Family, the school, Bank, Factory, parking lot, Square, Shopping center, airport, bus station, supermarket, Prison, Office buildings, meeting, Part, Chemical
CAUTION FOR SAFE OPERATION:
1. Be sure of power supply at DC 12V
2. Connect cables according to instruction, wrong connection may cause malfunction and /or damage the camera.
3. Do not allow the camera to be subjected to strong impacts or shocks the camera could be damaged by improper handing or storage.
4. Do not install at extreme warm or cold place. (Recommended operation : -10oC-50oC)
5. Never attempt to disassemble or modify the camera
6. If an abnormality should happen to occur, immediately contact us
