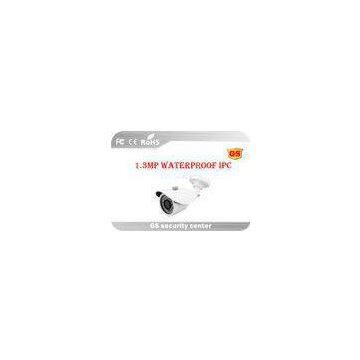

H.264 Megapixel IP Camera P2P , Waterproof Security Camera Bullet Type

model

IPC-EJ5110PL-IR2

IPC-EJ5313PL-IR2

IPC-EJ5320PL-IR2

camera

Image sensor

1/4\" OV 9712 CMOS

1/3\"AR0130 ultra-low illumination CMOS

1/2.8\"SONYIMX122?ultra-low illumination CMOS

Min.illumination

Color:0.1Lux @(F1.2,AGC ON),0 LUX with IR

Black/white:0.01 Lux @ (F1.2,AGC ON),0 LUX with IR

Color:0.01Lux @(F1.2,AGC ON),0 LUX with IR

Black/white:0.01Lux @ (F1.2,AGC ON),0 LUX with IR

Shutter

1/50(1/60)s-1/10,000s

Lens

HD professional lens 3.6mm@?F1.8?(6mm)

Lens mount

M12

Day/night

Support IR-CUT

compression

video compression

H.264 MainProfile, JPEG snapshot

bite rate

32 Kbps~6Mbps

32 Kbps~8Mbps

audio compression

G.711a


Max.image reolution

1280*720

1280*960

1920*1080

Frame rate

50Hz:25fps (1280*720)

60Hz:30fps (1280*720)

50Hz:25fps(1280*720)?(1280*960)

60Hz:30fps(1280*720)?25fps (1280*960)

50Hz:25fps(1920*1080)(704*576)
60Hz:30fps(1920*1080)(704*480)

Image setting

Saturation, brightness and contrast are adjustable through IE browser or client.

network

storage

Network storage

intelligent alarm

Motion detection, video loss, cable break, IP address conflicts

protocol

TCP/IP,HTTP,DHCP,DNS,DDNS,PPPoE,SMTP,NTP(HTTPS,SIP,802.1x,IPv6)

basic

anti-flicker, dual-stream, heartbeat, password protection

interface

net interface

One? RJ45 10M/100M

Audio interface

1ch 3.5mm audio input

general

Working condition

-10℃~60℃,humidity less than? 90%( non-condensing)

Power supply

DC12V±10%

Power consumption

IR3:6W MAX;

Protection range

IP66

IR distance

IR2:20-30 meters;

dimension

200mm*84mm*72mm

weight

300g
