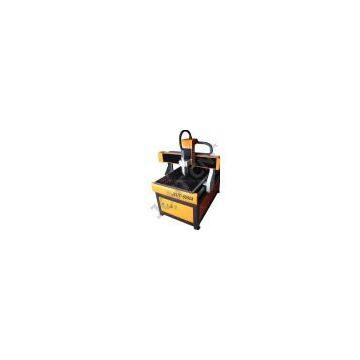

CNC router for advertising JCUT-6090A

Brand Name	JCUT		Place of Origin	China
Model Number	JCUT-6090A

ADVERTISING CNC Router JCUT-6090A Applications: Can be used for advertisement engraving, advertisement cutting, stone processing Cutting, Cu and Al molding cutting, mold manufacturing cutting, wood processing cutting, wood door manufacturing cutting, craft manufacturing cutting, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment molding processing cutting, sign and mark manufacturing cutting, acryl board processing cutting, stamp cutting. Features: 1) Machine body: whole cast iron 2)Guideway:XYZ-axis use cylindrical guideway 3)Driving mode:ball screw 4) Work dimensions: 600 x 900 x 70mm 5)Body dimensions: 800 x1, 200 x 1,200mm (with bracket) 6) Z-axis working area: 70mm 7) Max. Feeding height: 900mm or bigger 8) Cut thickness of material: ≤30mm 9) Max. Speed: 6,000mm/min 10) Working speed: 0 - 5000mm/min 11) Mechanical precision: 0.01mm 12) Software: type 3 software, Artcut software, Artcam software 13) Max. Power consumption: 1.6kW 14) Power source: AC 110/220/50-60Hz 15) Driver type: stepper motor(xyz -sxis use 57BYG motor) 16) Memory: 128MB or without 17) Spindle: 1.5kW variable speed, water-cooled motor 18) Spindle speed: 0 - 24,000rpm 18) Blade diameter: Ф3.175mm, 4mm,6mm 19) Control system: (NCSTUDIO) or DSP (USB interface) 20) Command: G code, u00, mmg, plt 21) Running circumstance temperature: 0 - 45°C 22) Relative humidity: 30% - 75% Packing: Packing dimensions: 900 x 1,350 x 1,300mm Net weight: 250kg (with bracket) Gross weight: 330kg
