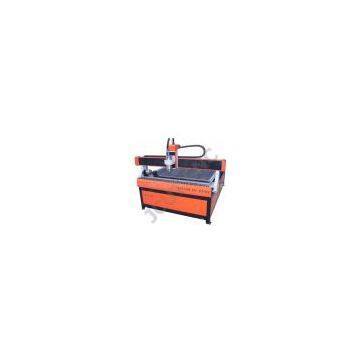

High scale cnc router(JCUT-1218B)

HIGH SCALE CNC RouterJCUT-1218B (47''x70.8'')

Applications:

Can be used on advertisement engraving, advertisement cutting, stone processing cutting, Cu and Al molding cutting, mold manufacturing cutting, wood processing cutting, wood door manufacturing cutting, craft manufacturing cutting, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment mold processing cutting, sign and mark manufacturing cutting,

Acryl board processing cutting, stamp cutting, and PCB cutting

Features: (X-axis,Y-axis  with dustproof equipment)

Machine body: whole cast iron

Guideway:XYZ axis use linear guideway

Driving mode:ball screw

4) Work dimensions: 1,200mm x 1,800mm x 80mm(

5) Body dimensions: 1,500mm x 2200mm x 1,500mm (with bracket)

6) Z-axis working area: 80mm(or 150mm)

7) Max. Feeding height: 120mm or bigger

8) Cut thickness of material: ≤40mm

9) Max. Speed: 6,000mm/min

10) Working speed: 0 - 4,000mm/min

11) Mechanical precision: 0.01mm

12) Software: type 3 software, Artcut software, Artcam software

13) Max. Power consumption: 1.8kW

14) Power source: AC 220/50/60Hz (or 110v/60HZ)

15) Driver type: stepper motor(XYZ-85BYG motor)

16) Memory: without or  (DSP)

17) Spindle: 1.5kW(Ф80mm) variable speed, water cooled motor (or 2.2kW or 3kW,or  bigger

18) Spindle speed: 0 - 24,000rpm/min

19) Blade diameter:Ф3.175mm, 4mm,6mm (or 8mm,10mm,12mm, 12.7mm)

20) Control system: (NCSTUDIO) or DSP (USB interface)

21) Command: G code, u00, mmg, plt

22) Running circumstance temperature: 0 - 45°C

23) Relative humidity: 30% - 75%

Packing:

Pack dimensions: 1,700 x 2300 x 1,600mm

Net weight: 900kg (with bracket)

Gross weight: 1000kg
