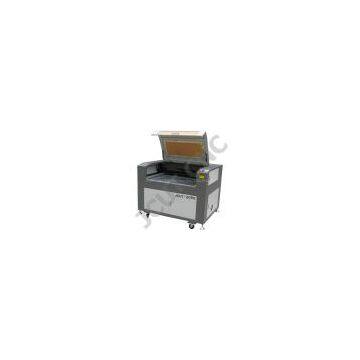

JCUT-6090 laser cutting machine and laser engraving machine (23.6'' X 35.4'')

The unique decelerate design make the mechanical system move stably and smoothly.

The edge of cutting is smooth and there is no sawtooth. The software adopts

continuous curve method to get faster cutting speed

Supply with CE certificate, FDA

1.   Specification:

1) Engraving area: 900 x600mm   ,  and a (900 x Infinite) work area with the Pass-through doors opened.

2) Whole machine size: 1,360 x 1010x 1070mm

3) Laser power: 60w (optional 80w)

4)Cutting speed: 0 - 24,000mm/min

   Engraving speed:0- 54,000mm/min

5) Resetting positioning accuracy: ±0.1mm

6) Power supply: AC 110 - 220V ±10%, 50 - 60Hz

7) Gross power: <1,000W

8) Operating temperature: 0 - 45°C

9) Operating humidity: 8 - 95%

10) Minimum shaping character: English 1 x 1mm

11) Graphic format supported: BMP, HPGL, PLT, DST, DXP, and AI

12) Driving system: stepper

13) Cooling mode: water-cooling and protection system

14)Auxiliary equipments :Exhaust-fans, air-exhaust pipe

15)Controlling software : DSP control system.

16)Compatible software: CorelDraw AutoCAD Photoshop

17)Laser- type: Sealed CO2 laser tube

18)Net Weight:220KG

Applicable materials: wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.

Applicable industries: advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry

2.Optional equipment:                  price(If you choose ,please pay for them)

Rise-down platform                                $300
Rotary axis                                           $300
Water pump                                          Free
Air pump                                              Free
Auto focus                                            $100
Red pot for position                               $100

honey-comb table                                  $300

Chiller unit                                            $500

Note:

1.     Rise-down platform:       adjust the height of table,enable the max thickness of material to reach 450mm

2.     Rotary device:               to engrave cylindrical material,such as pens,bottles

3.    Air pump:                       blow away the wast material and coolen proceed material surface

4.   Auto focus:                     engrave uneven surface

5 .  Red pot point of position:  realize simulation engraving,fast find the position

6,   honey comble table :       for engraving thin material

7, chiller unit :                       coolen the circulate water ,if you choose 80w , we suggest you choose it .

3.   Packing list:

we will  send a whole machine to you , also send some attachments to you free together with the machine , including software ,manual, pump, spanners , connection wires  etc . when you get the machine , you can use it directly.   i am sure you will use our machine easily and happily

4 .   Freight:

we send the machine by sea to your nearest sea port  free . certainly we can send the machine to your door , but  I'm afraid you should pay for some shipping cost. please tell us your detailed address and zip code,we will contact our shipping company and  offer a reasonable freight  to  you.

5 . Warranty:

the machine for one year,and the laser tube is for 100 days. we supply lifetime service online,  you can contact us by email or msn or skype , we will reply to you in 24 hours , and will reply to you timely if by phone.

By the way , the color of the machine you can choose , red or grey or other color , we will send the one that you like.

Any  questions , do not hesitate to contact me !
