Low price CNC router machine, cnc cutter machine

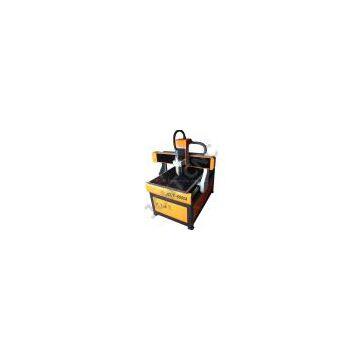

CNC Router JCUT-6090A

Features:

1) Machine body: whole cast iron

2)Guideway:XYZ-axis use cylindrical guideway

3)Driving mode:ball screw

4) Work dimensions: 600 x 900 x 150mm(or higher)
5)Body dimensions: 800 x1, 200 x 1,200mm (with bracket)

6) Z-axis working area: 150mm  or higher

7) Max. Feeding height: 100mm or or 150mm or higher

8) Cut thickness of material: ≤30mm

9) Max. Speed: 6,000mm/min

10) Working speed: 0 - 5000mm/min

11) Mechanical precision: 0.01mm

12) Software: type 3 software, Artcut software, Artcam software

13) Max. Power consumption: 1.6kW

14) Power source: AC 110/220/50-60Hz

15) Driver type: stepper motor(xyz -sxis use 57BYG motor)

16) Memory: 128MB or without

17) Spindle: 1.5kW variable speed, water-cooled motor

18) Spindle speed: 0 - 24,000rpm

18) Blade diameter: Ф3.175mm, 4mm,6mm

19) Control system: (NCSTUDIO) or DSP (USB interface)

20) Command: G code, u00, mmg, plt

21) Running circumstance temperature: 0 - 45°C

22) Relative humidity: 30% - 75%

Packing:

Packing dimensions: 900 x 1,350 x 1,300mm

Net weight: 250kg (with bracket)

Gross weight: 330kg

Applications:

Can be used for advertisement engraving, advertisement cutting, stone processing Cutting, Cu and Al molding cutting, mold manufacturing cutting, wood processing cutting, wood door manufacturing cutting, craft manufacturing cutting, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment molding processing cutting, sign and mark manufacturing cutting, acryl board processing cutting, stamp cutting.
