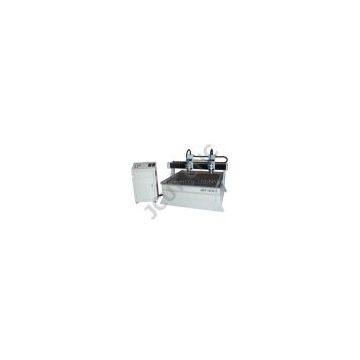

Double Stone Engraving Machine

Standard Feature:
1.  Machine body:whole cast iron
2. Driving mode:ball screw
3. Work dimensions:1200mm x 1500mm x 200mm
4. Body dimensions(with bracket): 1500mm x 1600mm x 1500mm
5. Z-axis working area: 80mm or 130mm
6. Max. Feeding heigh: 100mm or bigger
7. Cut thickness of material: ≤40mm
8. Max. Speed: 6,000mm/min
9. Working speed: 0 - 4,000mm/min
10.Mechanical precision: 0.01mm
11. Compatible Software: type 3 software, Artcut software, Artcam software
12. Max. Power consumption: 1.8kW
13. Power source: AC 220/50/60Hz
14. Driver type: xyz -sxis use 85BYG motor
15. Spindle: 2.2kW variable speed, water-cooled motor
16. Spindle speed: 0 - 24,000rpm/min
17.Blade diameter: 3.175mm,4mm,6mm
18.Control system:Ncstudio
19.Command: G code, u00, mmg, plt
20.Relative humidity: 30% - 75%

Pack dimensions:1700 x 1700 x 1600mm
Net weight: 650kg

applied range:
Precision engraving machine can cut material of metal sculpture, engraving and cutting ceramic tile, marble sculpture, advertising, engraving, cutting, stone carving, cutting copper and aluminum sculpture, mold engraving, cutting wood carving, crafts engraving cutting, arts and crafts box, sculpture, architecture, model making, interior, lighting industry, sculpture, sign making, acrylic engraving cutting, engraving plate
