5Gallon cap sealing(labeling) machine

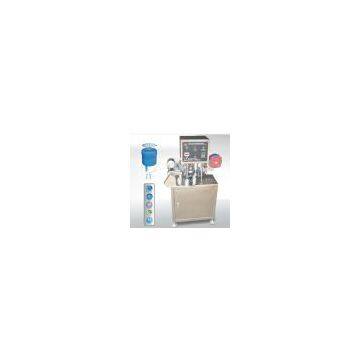

5 Gallon Cap Labeling  Machine(Sealing Machine)

1. Features:

1)      This machine is namely Fully Automatic Capper of Five-Gallon Barreled Water Bottle Cap. To comply with the international trends and meet the needs of market, we specially design this machine for factories with large capacity. It has advanced and unique techniques, which can help Smart Cap meets the Anti-fake, Sanitary, High-grade requirements.

2)      Procedures:  Automatic Sorting Cap, Cap Delivering, Vacuum Capping, Fliming and Feeding, Cutting Flim and Sealing, Second Sealing ,Vacuum Cap Removing, Quantity Counter.

3)      The machine has compact configuration, excellent functions. And it also has PLC and revolving encoder Controller, and the effect will be better with touch screen.

4)      The machine adopts the advanced vacuum systerm from Germany and pneumatic component from Janpa and Taiwan;

5)      The shield of machine is made of Stainless Steel, and it meets the santiary standard of GMP workshop.

6)      The machine has the function of non-fliming and non-calculating without cap.

2. Technical parameters

     Speed: 2200pcs / h

     Power: 1.2KW

     Voltage: 220 V

     Frequency: 50/60HZ

     Maximum Air Consumption: 0.15CBM/ Min.

     Size: 700×350×1200MM

     Weight: 550 KGS
