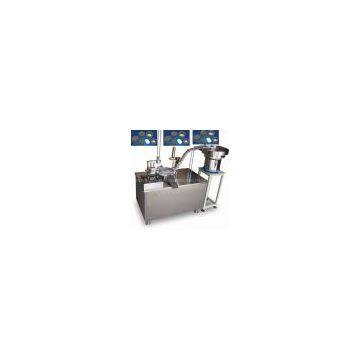

Aluminum foil cap label inserting machine

Aluminum foil cap label inserting machine

1.  Scope of Application:

This machine is widely used in the industry of Bottle Cap, Liner, Medicine, Foodstuff, Household Chmeicals, Package, etc. It is an ideal inserting machine.

2.  Features:

1) This machine replaces the handwork. It automatically inserts the liner into the bottle cap, and can raise work efficiency greatly.

2) Reasonable Liner Sealing, Fast speed, High efficiency, Safe and Sanitary product.

3) This machine is specially suitable for the occasion which has strict and severe sanitary requirements. It can avoid secondary pollution on the materials, and it can omit the sterilizing technics.

4) Sorting Cap System attaches the function of cap elimination, in order to make sure every finished bottle cap upward.

5) It has automatic counter inside, and can greatly raise the working efficiency afterwards.

6) It delivers the bottle cap by driving convey with accurate position. This machanism can put the messy bottle caps in the vibrating loading tray in order, and load them into the guide rail. The turnplate positions the caps and then it delivers to glue caps one by one automatically. Finally it automatically delivers to the outleting dipper.

7) It adopts mechanical drive deliver position machanism to make the machine operate smoothly. It is suitable for various specifiations of bottle caps and aluminum foil.

8) It adopts PLC controller, and has the alarm while out of liner and bottle cap. The electric control system adopts frequency conversion techniques. It has the advantages of free setting, wide application, easy operation, stable working, convenient cleaning and maintenance, durable in use, etc.

9) Our fully automatic packing machine is in strict accordance with National GMP Standard and process requirements.

3. Structure of equipment:

1) Automatic sorting cap machanism: it puts the messy bottle cap in order, and makes all cap upwards.

2) Bottle cap delivering machanism:it delivers the ready bottle cap into the liner inserting machanism in order and correct way.

3) Liner inserting machanism: it inserts the liner to the cap to finish liner inserting procedure.

4) Gluing machanism: it finishes the gluing before liner inserting (as per buyer’s option).
