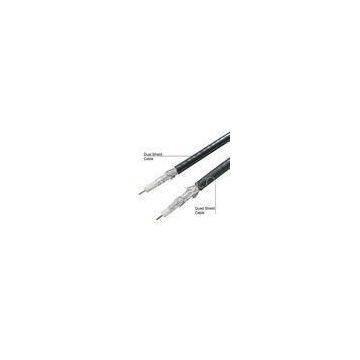

FEP Insulation Plenum RG6 3GHZ Coaxial Cable Quad - Shield with CMP PVC
USD $4 - $5
/ Set
1 Set(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
RG6 Direct Burial Coaxial Cable 18 AWG CCS 60% AL Braid , Dual Coaxial Cable
-
Quad - Shield RG6 CATV Coaxial Cable Jelly PE for Direct Burial
-
CATV CCTV Quad Shield Flexible RG6 Coaxial Cable Foamed PE 3GHz
-
AL Braiding Digital Coaxial Cable RG6 Quad Shield 18 AWG with CMR PVC Jacket
-
77% AL Braid Coaxial Cable RG6 18 AWG CCS with Jelly PE for Underground
-
Bonded AL Foil RG59 Coaxial Cable 20 AWG BC Foamed PE 95% CCA Braid CM Rated PVC
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
FEP Insulation Plenum RG6 3GHZ Coaxial Cable Quad - Shield with CMP PVC
Quick Detail:
RG6 Quad-Shield?Coaxial Cable 18 AWG CCS Conductor First Shield 60%?AL Braiding Second Shield 40% AL Braiding Foamed PE Insulation 75 Ohm? Bonded AL-Foil Tested to 3GHz ISO,CE,RoHS,UL 300M,1000FT,1000MDescription:
KT0697 RG6 Quad-Shield Coaxial Cable?18 AWG CCS B.60% Non-B.40% PVC-CMP?
?is a specific type of CATV coaxial cable , RG 6(Produced by KINGTONE) is perfect for
digital Cable and Satalite, Attenas, and communication systems. RG 6 has a? characteristic
impedance of 75 ohms. KINGTONE using best raw material and best worker to produce
RG 6 to meet high performance in practical application. RG 6 is packed in 300M/1000FT/
1000M?wooden spool, and will be layed on pallet to protect the spool and easier carry.
Because of good managing methods, KINGTONE’S price of RG 6 is not high although
our quality is really high.
Applications:
Suitable for RF signal transmission
■ CATV
■ MATV
■ CCTV
■ Local Area Network
■ Digital video
■ Antennas
| KT0697?RG6 Quad-Shield 18 AWG?CCS?Bonded?60%?Non-Bonded?40%?AL?Braiding?PVC-CMP?? | ||
| Construction?Parameters: | ||
| ??Inner?Conductor | 0.040\"/1.02mm/18AWG | Copper?Clad?Steel |
| ??Dielectric | 0.180\"/4.57mm?Foamed?PE??????????? | Gas?Expanded?Polyethylene |
| ??Shield?1 | 0.187\"/4.75mm? | Bonded?Aluminum?Polyproylene |
| ??Shield?2 | 60%?coverage?? | Aluminum?braid?wire |
| ??Shield?3 | Laminated?Aluminum?Tape | Non-Bonded |
| ??Shield?4 | 40%?coverage?? | Aluminum?braid?wire? |
| ??Jacket | 0.297\"±0.006\"/7.54±0.15mm? | PVC?CMP(Plenum?Rated) |
| ??Jacket?Thickness | 0.033\"/0.84mm | ? |
| ??Application | For?Use?in?Longer?CATV? | Run?Lengths |
| ? | ||
| Electrical?Characteristics: | ||
| ??Inner?Conductor?Resistance | The?Max.?at?20℃?shall?be?????? | <??87?Ω/km?;?<?26.6Ω/1000ft?? |
| ??Capacitance | 52?±3?pF/m?????????? | 15.9?±0.9?pF/ft |
| ??Impedance | 75?±?3?Ω | ? |
| ??Return?loss? | between?5?and?1000MHz:? | >?22dB |
| ??Velocity?of?Propagation? | 0.85 | ? |
| ??Sparker?Test?(VAC) | 4 | ? |
| ? | ||
| Attenuation(20℃): | ||
| Frequency? ??????????(MHZ)???????????? |
Max?Attenuation (dB/100ft) |
Max?Attenuation? (dB/100m) |
| 1 | 0.50? | 1.64? |
| 10 | 0.92? | 3.02? |
| 50 | 1.60? | 5.25? |
| 100 | 2.40? | 7.87? |
| 200 | 3.40? | 11.14? |
| 400 | 4.80? | 15.74? |
| 700 | 6.50? | 21.31? |
| 900 | 7.70? | 25.24? |
| 1000 | 8.10? | 26.55? |
| 1200 | 9.00? | 29.50? |
| 1450 | 9.90? | 32.46? |
| 1800 | 11.20? | 36.72? |
| 2200 | 13.00? | 42.62? |
| 3000 | 15.30? | 50.16? |
| ? | ||
| Mechanical?and?Envrionmental?Properties: | ||
| ??Cable?bend?radius | 10?times?the?cable?diameter | |
| ??Operating?Temp?Range??(PVC) | -20?℃?to?75℃ | |
| ??Cable?diamensions | 0.2988\"±0.006\'\'/7.59±0.15?mm?PVC? | |
| ? | ||
| Order?Informations: | ||
| ??Marking |
KINGTONE?KT0697?RG6?Bonded?60%?NonBonded?40%? PVC?CMP?CATV?COAXIAL ?CABLE?×××M/FT |
|
| ??Package | 500FT/Pull?Box,?1000FT/Wooden?Spool/Pallet | |
| ??Delivery?time | Normally?25?days?after?received?the?deposit. | |
| ??More?informations | Please?contact?with?us. | |
| ? | ||
| Online?Service: | ||
| ??Skype | kingtone3 |
