75 Ohm Dual RG6 Coaxial Cable with Messenger CE Standard for CCTV CATV Transmission
USD $4 - $5
/ Meter
1 Meter(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Non Plenum UL CM Dual RG6 Coaxial Cable Quad - Shield 18 AWG CCS 75 Ohm Cable
-
Digital Video Black Dual RG6 Siamese Cable / 75 Ohms 18 AWG Coaxial Cable
-
CM 18 AWG RG6 Quad Shield Coaxial Cable with Messenger Aluminum Braiding
-
FEP Insulation Plenum RG6 3GHZ Coaxial Cable Quad - Shield with CMP PVC
-
RG6 Direct Burial Coaxial Cable 18 AWG CCS 60% AL Braid , Dual Coaxial Cable
-
Quad - Shield RG6 CATV Coaxial Cable Jelly PE for Direct Burial
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
75 Ohm Dual RG6 Coaxial Cable with Messenger CE Standard for CATV Transmission
Quick Detail:
Dual RG6 CATV Coaxial Cable 18 AWG CCS Conductor 60% AL Braiding Foamed PE Insulation 75 Ohms? Bonded AL-Foil Zinned Steel Messenger Tested to 3GHz ISO,CE,RoHS,UL 100M, 305M, Wooden Spool, PalletDescription:
KT0685 RG6 Dual CATV COAXIAL CABLE 18AWG CCS 60% B.AL Braiding PVC Messenger??
?is a specific type of CATV coaxial cable , RG 6(Produced by KINGTONE) is perfect for
digital Cable and Satalite, Attenas, and communication systems. RG 6 has a? characteristic
impedance of 75 ohms. KINGTONE using best raw material and best worker to produce
RG 6 to meet high performance in practical application. RG 6 is packed in 300M/1000FT/

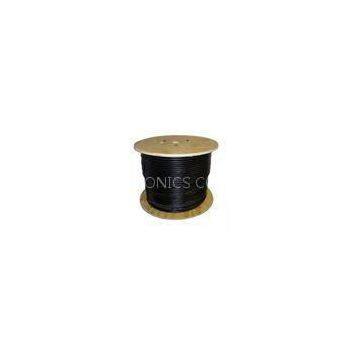

1000M?wooden spool, and will be layed on pallet to protect the spool and easier carry.
Because of good managing methods, KINGTONE’S price of RG 6 is not high although
our quality is really high.
Applications:
Suitable for RF Signal Transmission
■ CATV
■ MATV
■ CCTV
■ Local Area Network
■ Digital Video
■ Antennas
|
KT0685 Dual RG6?CATV?COAXIAL?CABLE?18AWG?CCS?60%?Bonded?AL?Braiding?PVC?Messenger? |
||
| Construction?Parameters: | ||
| ??Inner?Conductor | 0.040\"/1.02mm/18AWG | Copper?Clad?Steel |
| ??Dielectric | 0.180\"/4.57mm?Foamed?PE????????? | Gas?Expanded?Polyethylene |
| ??Shield?1 | 0.187\"/4.75mm? | Bonded?Aluminum?Polyproylene |
| ??Shield?2 | 60%?coverage?? | Aluminum?braid?wire? |
| ??Jacket | 0.268\"±0.006\"/6.81±0.15mm? | PVC? |
| ??Jacket?Thickness | 0.030\"/0.76mm | ? |
| ??Messenger | 0.072\"/1.83mm | ? |
| ??Minimun?Breaking?Strength | 365lbs./166kg | ? |
| ??Application | For?Use?in?Longer?CATV | Run?Lengths |
| ? | ||
| Electrical?Characteristics: | ||
| ??Inner?Conductor?Resistance | The?Max.?at?20℃?shall?be?? | <??87?Ω/km?;?<?26.6Ω/1000ft? |
| ??Capacitance | 52?±3?pF/m??????????? | 15.9?±0.9?pF/ft |
| ??Impedance | 75?±?3?Ω | ? |
| ??Return?loss? | between?5?and?1000MHz: | >?22dB |
| ??Velocity?of?Propagation? | 0.85 | ? |
| ??Sparker?Test?(VAC) | 4 | ? |
| ? | ||
| Attenuation(20℃): | ||
| Frequency? ???????????(MHZ)???????????? |
Max?Attenuation (dB/100ft) |
Max?Attenuation? (dB/100m) |
| 5 | 0.58? | 1.90? |
| 55 | 1.60? | 5.25? |
| 83 | 1.95? | 6.40? |
| 187 | 2.85? | 9.35? |
| 211 | 3.05? | 10.00? |
| 250 | 3.30? | 10.82? |
| 300 | 3.55? | 11.64? |
| 350 | 3.85? | 12.63? |
| 400 | 4.15? | 13.61? |
| 450 | 4.40? | 14.43? |
| 500 | 4.66? | 15.29? |
| 550 | 4.90? | 16.08? |
| 600 | 5.10? | 16.73? |
| 750 | 5.65? | 18.54? |
| 865 | 6.10? | 20.01? |
| 1000 | 6.55? | 21.49? |
| ? | ||
| Mechanical?and?Envrionmental?Properties?: | ||
| ??Cable?bend?radius | 10?times?the?cable?diameter | |
| ??Operating?Temp?Range??(PVC) | -20?℃?to?60℃ | |
| ??Cable?diamensions | 0.268\"±0.006\"/6.81±0.15mm?PVC | |
| ? | ||
| Order?Informations: | ||
| ??Marking |
KINGTONE?KT0685?RG6?Dual?60%?Bonded?PVC?Messenger?CATV?COAXIAL? CABLE ?×××M/FT |
|
| ??Package | 500FT/Pull?Box,?1000FT/Wooden?Spool/Pallet | |
| ??Delivery?time | Normally?25?days?after?received?the?deposit. | |
| ??More?informations | Please?contact?with?us. |
