Product Details
| Brand Name | Ocolour | Place of Origin | China | |
| Model Number | OC-OB-P10SMD3535 |
Product Description
Certification:CE/RoHS/FCC/ETL/TUV
RGB 3D LED Advertising Screen / LED Video Display Convenient For Sports
?
Quick Viewing:
Less than 1/ 10?? of pixel out of control, dispersion state;
More than 5000hours meant time to failure;
Cabinet size and color could be adjustable by demands;
With high brightness of 511CD per square feet;
-30oC to +60oC of working temperature;
Working humidity is between 20% and 90%;
Color temperature is from 3000K to 9000K and adjustable;
Front-maintained for convenient;
Pixel pitch is 0.39 inch (10mm) for outdoor usage;
Physical density: 929dots per sq.ft (10000 dots per sq.m);
Module pixel configuration of W 32 × H 32 dots;
Module size is W 12.60 X H 12.60 inch (W 320 × H 320 mm);
More than 960Hz refreshing frequency and 14bit grey scale;
120 °Horizontal viewing angle and 120° vertical viewing angle;
Driving method is 1/4 can constant current;
MBI5041/MBI5024/JXI5020 of driving IC available.
?
Detailed Description:
With unique water-proof design, the cabinet is qualified for IP65 defend level and is able to be installed in outdoor.
With operating temperature between -30℃-60℃, LED display is able to be installed in any environments and our products even can be able to operate in coastal place with high temperature and high salt degree.
?
Popular Application:

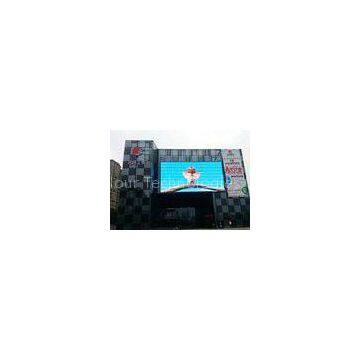

Advertising media, sports stadiums, airport station integrated information dissemination, business establishments, and public square.
?
Specifications:
Item | Technical Parameters |
Screen model | OC-OB-P10SMD3535 |
Led encapsulation | SMD3535 |
Led configuration | 1R1G1B |
Pixel pitch(mm/inch) | 10mm / 0.39 inch |
Red chip | Wavelength range: 619-628nm, 5nm; |
Green chip | Wavelength range: 461-470nm, 4nm; |
Blue chip | Wavelength range: 522-531nm, 4nm; |
Resolution | 929dots/sq.ft (10000dots/㎡) |
Maintenance | Front-maintained |
Brightness: CD/sq.ft (CD/㎡) | >511CD/sq.ft (5500 CD/㎡) |
Refreshing frequency: Hz | >960 Hz |
Grey scale | 14bit |
Module pixel | W 32 × H 32 dots |
Module size | W 12.60 X H 12.60 inch (W 320 × H 320 mm) |
Viewing angle | Horizontal: 120°, Vertical: 120° |
Cabinet material | Aluminum/steel |
Lightness uniformity | Pixel & module>90% |
Cabinet color | Customized |
Driving method | 1/4 scan constant current |
Driving IC | MBI5041/MBI5024/JXI5020 |
Cabinet size | Cabinet size could be adjustable by demands |
Power supply | 85-264VAC, typical value: 110VAC/220VAC |
Max consumption | Max.≤89.12W/sq.ft (960W/㎡) |
Average consumption | Ave.: 29.73-44.59w/sq.ft(Ave.:320-480w/㎡) |
Led life time | ≥100000hours |
Mean time to failure | ≥5000hours |
Module plainness | ≤1mm |
Pixel out of control | less than 1/ 10??, dispersion state |
Working temperature | -30oC to +60oC |
Working humidity | 20% to 90% |
Waterproof IP | lamp & top:IP65, other part:IP54 |
Protection function | dampproof/dust-free/anti high temp/anti-thunder/ anti electromagnetic interference, etc |
Certificate | CCC /CE/UL/Rohs/Tuv |
Hardware interface | Standard PC network interface technology/U disc/3G |
Display mode | 24 bit true color |
Colors | 281 trillion colors |
Colour processing ability | ≥14bit |
Color temperature | 3000K ≤ TC ≤9000K, adjustable |
Brightness regulating degrees | continuo |
