Customized LED Advertising Screen Full Color With Double - Sided for Outdoor

Item

Technical Parameters

Screen model

OC-MT-P5SMD2525

Red chip (wavelength range: 620-630nm, 5nm)

Brightness range: 500-900mcd

Green chip(wavelength range: 460-470nm, 4nm)

Brightness range: 1200-1500mcd

Blue chip (Wavelength range: 520-530nm, 4nm)

Brightness range: 300-450mcd

Module

Led configuration

SMD?3 IN 1: SMD2525/SMD3528

Pixel pitch (mm)

5mm(0.2 inch)

Module resolution (W X H)

W 32 x H 32 dots

Module dimension (W x H inch)

W 6.3 x H 6.3 x D 0.67 inch

(W 160 × H 160 x D17 mm)

Cabinet

Module quantity(W × H)

W 6 × H 2, per side

Cabinet resolution(W × H)

W 192 × 64 dots, per side

Cabinet dimension(W x H inch)

W 37.80 x H 12.60 inch per side

(W 960 x H 320 mm per side)

Cabinet surface area(sq.ft)

3.31 sq.ft / (0.31sq.m) per side

Physical pixel density (dots/sq.ft)

3716dots/sq.ft(40000dots/㎡)

Brightness

≥465CD/sq.ft (5000CD/㎡)

Cabinet flatness(inch)

≤0.08inch (0.2mm)

Maintenance

Back-maintained

Cabinet material

Aluminum

Cabinet weight

≤48.5lb (22kg)

Optical parameters

Single-point brightness correction

Available

Single-point color correction

Available

Color temperature(K)

3200—9300 adjustable

Horizontal viewing angle

120°

Viewing angle (Vertical)

120°

Brightness Uniformity

<3%

Color uniformity

≥97%

Contrast ratio

5000:1

Electrical parameters

Max power consumption

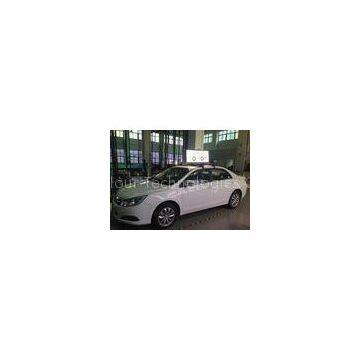

580W per unit of taxi led screen

Average power consumption

180-240W per unit of taxi screen
