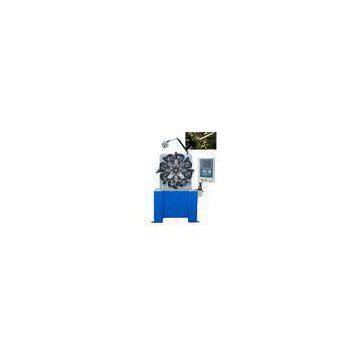

Professional Extension Spring Machine Rotation Core System Installed On The Axis
- T/T L/C D/P D/A
- 7 days
You May Like
-
Versatile Extension Spring Coiling Machine With Spinner And Gas Cylinder
-
40mm Extension Spring Machine Computerized Cam Rotation System 0.1 - 359.9
-
0.30 - 2.30mm Universal Extension Spring Machine / Spring Making Machinery
-
Precise Tensile Force Extension Spring Machine 4 Axis With High Speed 100pcs / Min
-
40mm Extension Spring Manufacturing Machine Consists Of Rotation Core And Rolling Axis
-
Multi Function Extension Spring Machine / CNC Spring Forming Machine
Product Details
| Brand Name | XD | Place of Origin | China | |
| Model Number | CNC-20 |
Product Description
Certification:CE / ISO9001
0.30-2.30mm CNC20 3-4 axis extension spring machine for tensile springs 100pcs/min
XD-CNC20 universal spring forming machine
Technical?Parameter:
|
Model: |
XD-CNC20 |
|
Wire?diameter: |
φ0.3～2.3?mm |
|
Axes: |
3?axes |
|
Maximum?Outside?Diameter: |
40mm |
|
Maximum?Feeding?Length: |
unlimited |
|
Maximum?Manufacture?Speed: |
100pcs/min |
|
Feed?Speed |
200m/min |
|
Memory?Number: |
1000PCS |
|
Wire?Feed?Servo?Motor: |
2.7?KW |
|
Cam?Servo?Motor: |
2.7?KW |
|
Quin?Servo?Motor |
0.75?KW |
|
Power?AC: |
220V?3P?50/60Hz |
|
Dimensions?(L*D*H): |
1400X550X1600MM |
|
Wooden?Case?Dimensions |
1600x600x1700mm |
|
Machine?Weight: |
900Kg |
|
Gross?Weights |
950Kg |
Details:
1.?The?spring?machine?rotation?core?system?is?installed?on?the?axis.?The?axis?can?rotate?leftwards?
and?rightwards.?The?rolling?axis?is?installed?on?the?sliding?house.?The?cam?drives?it?rotate?360°,?
also?can?control?direction?action?or?designated?moves?back?and?forth.
2.?Optional?accessories:?Cutting?tools,?rolling?axis,?safety?door.
Applicated products:
