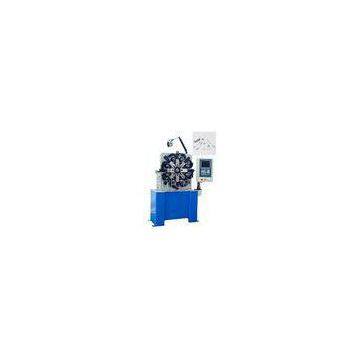

Small Extension Spring Machine Consists Of Cam Axis / Spring Winder Machine

high precision computerised 3 axis CNC20 extension spring machine 0.30-2.30mm wire diameter

XD-CNC20 universal spring forming machine

Technical?Parameter:

Details:
1.?CNC20?spring?machine?consists?of?cam?axis,?wire?feeding?axis,?rotation?core?and?rolling?axis.?

The?mechanical?part?has?eight?sets?of?sliding?blocks.?The?winch?and?cam?rotation?have?three

?mechanical?part?has?eight?sets?of?sliding?blocks.The?winch?and?cam?rotation?have?three?mechanical?

action?types:?extruding,punching?and?molding.

2.?The?computerized?cam?rotation?system?can?be?set?from?0.1- ? ?359.9°,?every?two?wire?feeding?

wheels?constitutes?of?one?group,?totally?two?groups.?
3.?XD-CNC20?universal?spring?machine?is?equipped?with?XinDing?spring?machine?controller.?

The?controller?system?can?save?1000?material?numbers.?Axis?location,?feeding?data,?production

?speed?and?production?output?are?displayed?on?the?screen.?The?program?data?can?be?set?and

?changed?easily.
4.?The?spring?machine?rotation?core?system?is?installed?on?the?axis.?The?axis?can?rotate?leftwards?

and?rightwards.?The?rolling?axis?is?installed?on?the?sliding?house.?The?cam?drives?it?rotate?360°,

?also?can?control?direction?action?or?designated?moves?back?and?forth.
5.?Optional?accessories:?Cutting?tools,?rolling?axis,?safety?door.

Machine front board:
