Product Details

Brand Name	Xintian		Place of Origin	China
Model Number	XT-D

Product Description

Delivery Time:30-90 days
Certification:CE ISO9001:2000

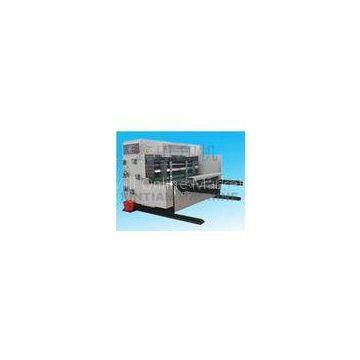

Heat-treatment Vacuum Adsorption Corrugated Carton Machinery

Functions and Features:

Whole machine electric parts are domestic famous brand with good and steady quality Tempering is used to decrease metal internal force in complete machine baffles and key parts, and these parts are made by high-precision processing center and grinded by numeric-control grinder. All the transmission axles and rollers are made by high-quality steel, and processed by tempering and dynamic balance, plated with rigid chrome and grinded surface All the transmission gears are made by the 45# alloy steel, and are grinded after heat-treatment, which maintains high topping precision The whole machine adopts spray lubrication, equipped with double oil pipe balance system. Optional equipments: presetting adjustment function, feeding, printing, slotting, all featuring automatic zero setting and memory reposition Whole machine working interval adjustment, self-lock worm wheel and worm device, fast and convenient Vacuum adsorption, kick or lead edge feeding to customers’ request

Option: Ceramic anilox roller and stacker Machine

Main technical parameter

SERIAL	WYAZS NAME	UNIT	WYAZS
1200×1800/2200	1400×1800/2600
1	Inboard width	mm	2200	2600	2600	3000
2	Max. coverage size	? mm	1270×2000	1270×2400	1470×2400	1470×2800
3	Max. printing area	? mm	1200×1800	1200×2200	1400×2200	1400×2600
4	Min.finish size	? mm	320×640	320×640	380×720	380×720
5	Thickness of printing plate	? mm	7.2	7.2	7.2	7.2
6	Max. speed	Pieces/min	140	140	130	130
7	Economic speed	Pieces/min	110	110	100	100
8	Topping precision	? mm	±0.5	±0.5	±0.5	±0.5
9	Slotting precision	? mm	±1.5	±1.5	±1.5	±1.5
10	Max.slotting depth	? mm	300	300	350	350
11
