Product Details
| Brand Name | JLF | Place of Origin | China | |
Product Description
Certification:ISO9001:2008

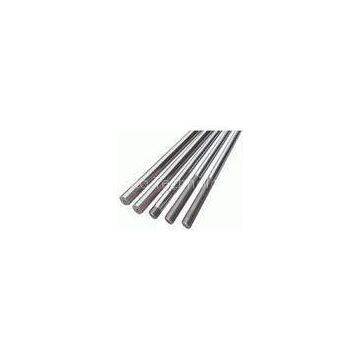

OEM chrome plated hollow guide precision shafts
Detailed?Description
Due to the nature of their hollow structure, the hollow guide precision shafts?in a large extent, reduce the weight of the equipment, and?Simplifying the structure. The internal structure of the hollow shaft being adapted for penetration measurement wires, compressed air, was addedLubricants and hydraulic fluids, or for the robot arm.
1. Material: CK45, SAE1045, 4140, 4340, JIS45C, 40Cr, 20MnV6, 42CrMo, SS431, SS430, Duplex2205, Stainless Steel 304/316, etc.
2. Diameter: Φ 6-500 mm
3. Length: max 16m
4. Chrome layer: 20 micron (min)
5. Hardness of the chrome layer: 800HV (min)
6. Roughness: Ra ≤0.2u
7. Straightness: ≤ 0.2/1000
8. Diameter tolerance: ISO f7
9. Roundness: the deviation of roundness is 50% of the diameter tolerance at the most.
10. Supply condition: Hard chrome plated/ Hardened and tempered/ Induction hardened
11. Packing: Anti rust oil to be spread on rod surface and each rod to be packed in paper roll and then in wooden case.
Our Advantage?
High Quality Reliable? Durable Reasonable Price Good after Service According to customer specific requirements for processing More Than 10 Years ExperienceFactory Pictures
Customers?visit factory
