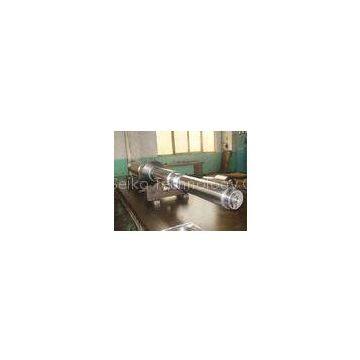

Customized Big Bore Hydraulic Cylinder Piston Rods For Pressing Machinery with ISO
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Strength Small Size 6mm CK45 Hard Chrome Piston Rods for hydraulic cylinder
-
CK45 , ST52 , 20MnV6 Induction Hardened Rod High Hardness And Wear - Resistance
-
High Precision GCR15 or C45# Piston Shafts for Hydraulic Cylinder OEM Service
-
Custom made CNC Machining Turning Part Precision Shafts polishing or anodizing
-
High Precision Machining Automobile Transmission Shaft Gcr45 Steel 58 - 62 Hardness
-
Hard chrome plated optical axis cylinder linear rail optical axis linear shaft hollow shaft
Product Details
| Brand Name | JLF | Place of Origin | China | |
Product Description
ISO Big Bore Piston Rod Hydraulic Cylinder For Pressing Machinery
Product Specifications
| Piston?Rod | |
| Size:???6-300mm | |
| Length:?3m?-8m? | |
| Material:?45#?DIN?CK45/JIS?45C | |
| Tolerance:?ISO?f7????? | |
| Chrome?thickness:?20~30micron? | |
| Hardness?of??the?chrome?layer:?850HV(min)?????? | |
| Roughness:?Ra?0.2micron?(max) | |
| Straightness:?0.2/1000mm | |
| Mechanical?properties:??(CK45/JIS?45C) | |
| Yield?Strength?≥320?Mpa??????? | |
| Tensile?Strength?≥580?Mpa???? | |
|
Elongation?≥?15% |
|
Material |
C% |
Mn% |
Si% |
S% |
P% |
V% |
Cr% |
|
Ck45 |
0.42-0.50 |
0.50-0.80 |
0.04 |
0.035 |
0.035 |
||
|
ST52 |
0.22 |
1.6 |
0.55 |
0.035 |
0.04 |
||
|
20MnV6 |
0.16-0.22 |
1.30-1.70 |
0.10-0.50 |
0.035 |
0.035 |
0.10-0.20 |
|
|
42CrMo4 |
0.38-0.45 |
0.60-0.90 |
0.15-0.40 |
0.03 |
0.03 |
0.90-1.20 |
|
|
40Cr |
0.37-0.45 |
0.50-0.80 |
0.17-0.37 |
0.80-1.10 |
Mechancial Properties:
|
Material |
T.S? N/MM2 |
Y.S? N/MM2 |
E%(MIN) |
CHARPY |
CONDITION |
|
CK45 |
610 |
355 |
15 |
>41J |
NORMALIZE |
|
CK45 |
800 |
630 |
20 |
>41J |
Q + T |
|
ST52 |
500 |
355 |
22 |
NORMALIZE |
|
|
20MnV6 |
750 |
590 |
12 |
>40J |
NORMALIZE |
|
42CrMo4 |
980 |
850 |
14 |
>47J |
Q + T |
|
40Cr |
1000 |
800 |
10 |
Q + T |
Specifications
carbide piston rods?
1.Good abrasive resistance?
2.Long service life?
3.Good heat & corrosion resistance
Product Advantages
1, high strength and high hardness.
2, excellent hardness, wear-resistance, high elastic modulus, high flexural strength,
3, good chemical stability (acid, alkali, high temperature oxidation), impact resistance,?
4,?good toughness, low coefficient of expansion etc,
Packaging Show
Equipments Show
customers visit ?factory
