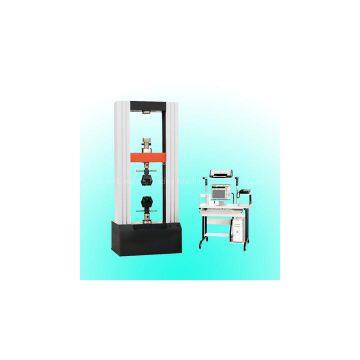

Universal Tensile Testing Machine 200KN Computer Control

1.Model:WDW-200

2.Product name:computerizedelectrical universal testing machine

3. Applications of testing machine

Thismachine is applicable to metal, cementing compound, tubes, sectional bars,aerospace, petrochemical, waterproof rolls, wire and cable, textile, fiber,rubber, ceramics, food, mechanical packaging, geo-textile, film, wood, paperand other industries and quality supervision department, and it also can beused in college for teaching demonstration.

4. Features of testing machine

1)Adopting aluminum alloy cover, with attractive streamline structure

2)Mainly used to test mechanical properties for metal, non-metal and compositematerials

3)Adopting precision auto control and data acquisition system to realize fullydigital adjustment to data acquisition and control process. During test, it cantest max. Bearing tensile force, compression force, tensile strength,deformation, elongation, yield point and other technical specifications

4)After test, the above parameters can be calculated automatically through maincontroller according to the test parameters, which are set before test andmeantime display the corresponding test results. All test parameters can besaved and inquired after test, also can be printed out.

5)With remote control box to realize speed adjustment of crossbeam, flexibly andfreely switched

6)With functions of automatic return to original position, intelligently,efficiently, quickly

7)With limit position function of any working position and over voltage, overcurrent protection functions, reliable and safe

8)With many control modes of constant speed control to force, stress,deformation, strain and low cycle and user self-programming control

9)Switch among many test curves: stress-strain curve, load-deformation curve,load-displacement curve, load-time curve, deformation-time curve,displacement-time curve. Partial enlargement, overlap and comparison.
