shaft diameter 65mm silent track orbit forming machine with 20 forming stations
Negotiable
/ Set
1 Set(Min.Order)
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
50mm diameter shaft chain transmission \'U\' channel forming machine with PLC control touch screen
-
11KW automatical \'U\' orbit forming machine for 1.5-2.0mm thickness material with 55mm shaft
-
Automatic 7.5KW power Cnc Roll Forming Machine , L Profile Forming Machine
-
8-15m/min Speed L Profile Forming Machine , Steel Roll Forming Machine
-
Automattic C Track Orbit Cold Roll Forming Machine For 1.8-2.5mm Thickness Steel Material
-
PANASONIC PLC Control Color Steel Metal Roofing Roll Forming Machine 0.5-1.0mm Thickness
Product Details
| Brand Name | HUAZHONG | Place of Origin | China | |
| Model Number | HZ-U-100 |
Product Description
Certification:CE/ISO
Detailed Product Description
?
shaft diameter 65mm silent track orbit forming machine with 20 forming stations
?
??Workflow of Roll Forming Machine??
Un-coiler----feeder guide----roll forming----Hydraulic cutting----run out table
?
?
??Main Specifications??
Coil Material | Thickness | 1.8-2.0mm |
| Coil width | Custom-made | |
| Yield Strength | 235Mpa | |
| Material | Q235 ? ? ? ? ? ? ? ? ? ? ? ? | |
| Decoiler / Uncoiler | Coil Width | Max. 350mm |
| I.D | 300mm | |
| O.D | Max. 560mm | |
| Roll Forming??Machine | Forming stations | 20 Stations ( Depend on Profiles ) ? |
| Roller material ? | GCr15 steel, HRC58-62??????????? | |
| Diameter of shaft?????????????????? | 65mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Gear box with universal joint transmission system | |
| Forming speed ? ?? | 5-15m/min | |
| Main power | 11KW | |
| Cutting | Cutting type | Hydraulic cutting |
| Cutting?Tolerance???? | 10m0.5mm | |
| Encoder | OMRON Brand | |
| Electrical control | PLC | Delta Brand or Custom-made |
| Inverter | Delta?Brand or Custom-made | |
| Touch screen | Delta? Brand?or Custom-made | |
| Operation type | Touch screen & Button | |
| Runout Table | Table type | Simple nonpower type |
| Function | To support the finished panels |
?
?
??Main Components??
| Main Roll Forming Machine | 1 Unit |
| PLC Computer Control Board | 1 Unit ? ? ?? |
| Hydraulic cutting | 1 Unit |
| Decoiler / Uncoiler | 1 Unit |
| Hydraulic Station | 1 Unit |
| Runout Table | 1 Unit |
?
?
??Application??
?
This machine?is used in the production of?shutter?door?orbit?( silent orbit )
?
??Our Advantage??
?

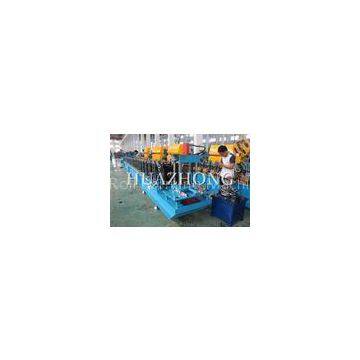

Machine Pictures??
?
?
?Company introduction??
