pole changing multi speed motor

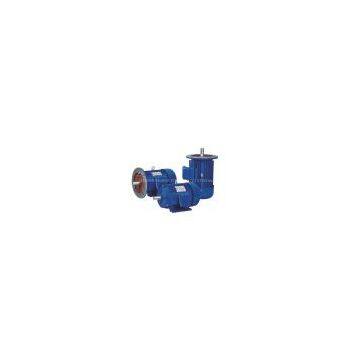

YD series pole-changing multi-speed induction motor

BRIEF INTRODUCTION

YD series is one of the main derived series of Y series, a national unified designed latest product in China and a replacement type for the JOD2 series  it can change speed easily. The speed of this series motor can be changed step by step according to the requirements of load characteristics, thereby reaching the aims of economizing on electricity and simplifying the system of speed variation. This series of motor has great starting torque and low noise and vibration, and  its mounting dimensions are complied with the standard of the International Electrotechnical Commission(IEC),it has a fairly good interchangeability  as compared with the similar products of the same kind so that it is easy to maintain and used widely in the industrial departments of machine tools, chemical industry ,textile, metallurgy and mine, etc. The degree of protection of the motor is of IP44, cooling mode is IC0141,and B-class insulation is adopted, the mode of rating is continuous running.

Notes:The connection strap mode must correspond to power&speed .

OPERATING CONDITIONS

Protection class:IP44,IP54,IP55

Insulation class: B,F

Cooling method: Ic411

Rated frequency:50Hz,60Hz

Rated voltage:220/380V,380/660V,220/340V,220/440V,400/415V

Duty:S1(continuous)
