Product Details
| Brand Name | VISION | Place of Origin | China | |
| Model Number | VMC8.24e |
Product Description
Certification:CE/ROHS

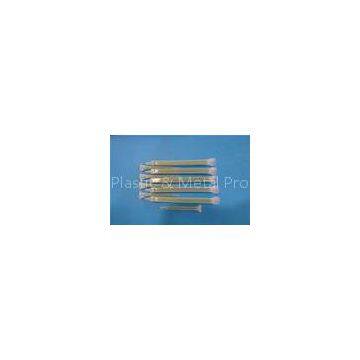

Disposable Static Mixer/8.24e cartridge static mixing nozzle
Specifications:
The vmc?8.24e cartridge static mixing nozzle to the Dispensers. The patented mixer keep parts A and B of the adhesive separate until they meet inside the mixing tips. As a result of this design, the static mixer prevents cross contamination and curing of the A and B components at the interface (Where the dispenser and static mixer connect.)This eliminates the common unwanted curing problems that typically occur at that interface when using traditional meter, mix, and dispense equipment.
| Prat No | Inner Dia.I.D | Number of Elements | Outer Dia.O.D. | Length L(mm) |
| MA3.0-4S | 3 | 4 | 4.6 | 36.2 |
| Y3.0-4 | 3 | 4 | 4.6 | 37.6 |
| MA3.0-8S | 3 | 8 | 4.6 | 36.2 |
| Y3.0-8 | 3 | 8 | 4.6 | 37.6 |
| MA3.0-8D | 3 | 8 | 4.6 | 62.2 |
| MA3.0-17S | 3 | 17 | 4.6 | 62.2 |
| MA5.4-17S | 5.4 | 17 | 7.6 | 103.6 |
| MA6.3-20S | 6.35 | 20 | 8.7 | 146 |
| MA6.3-20L | 6.35 | 20 | 8.7 | 148.9 |
| MA6.3-21S | 6.35 | 21 | 8.7 | 153 |
| MA6.3-21L | 6.35 | 21 | 8.7 | 151.5 |
Suggested?Use?Materials:
Epoxies,?Acrylics,?Silicones,?Polyesters.
Epoxy?Acrylates,?Hybrids,?Urethanes.
Polysulfides,?foams,?Polymers,?polyureas
Intended use:
The vmc8.24e cartridge static mixing nozzle??is used to mix the 2-component adhesives ( dental impression material )from the cartridges conveniently uniform mixing 1:1.
Contraindication:
No contraindication is identified by now.
