C Type Deep Throat Power Press With PLC Controller, Balancing Bar Device 1000 / 1250 kn

FOB Price

Negotiable / Metric Ton

1 Metric Ton(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SINOMI, XUDUAN		Place of Origin	China
Model Number	JE21S Series

Delivery Time:45-90 days
Certification:ISO9001:2000, CE

C Type Deep Throat Power Press With PLC Controller, Balancing Bar Device ?1000 / 1250 kn

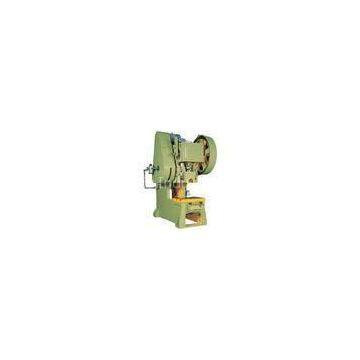

JE21S Series C Type(C Frame) Deep Throat Power Press

Specification:

Item	Unit	JE21S-20	JE21S-25	JE21S-40	JE21S-63	JE21S-80	JE21S-100	JE21S-125
Nominal?force	kn	200	250	400	630	800	1000	1250
Nominal?stroke	mm	2.5	2.5	4	4	5	6	6
Gliding?stroke	mm	60	60	100	120	130	140	140
Gliding?frequency	times/min	120	100	40	60	53	40	40
Open?height	mm	170	180	220	300	350	320	320
Open?height?adjustment	mm	70	70	80	80	100	100	100
Distance?between?gliding?block?and?frame	mm	700	700	700	700	700	760	760
Working?table?size	mm	320x480	400x600	480x710	570x760	580x860	710x1100	720x1200
Blanking?hole?size	mm	Φ120	Φ180	Φ220	Φ220	Φ220	Φ260	Φ260
Working?table?thickness	mm	65	70	80	90	100	120	120
Gliding?block?surface?size	mm	180x200	210x250	270x320	280x320	280x380	420x560	420x560
Hole?size?of?die?shank	mm	Φ40x40	Φ40x70	Φ50x70	Φ50x80	Φ60x75	Φ60x80	Φ60x80
Distance?between?uprights	mm	220	330	390	470	450	630	620
Motor?power	kw	2.2	3	4	5.5	7.5	7.5	11
Outer?dimension	Length	mm	1800	1790	1965	2220	2220	2600	2600
Width	mm	1000	1150	1330	1500	1530	1600	1660
Height	mm	1980	2288	2295	2600	2650	3000	3000
Weight	kg	2440	3160	4700	5900	6520	12800	13800

Features?? ??? ??? ??? ?

* Large working s
