Home > Products > Sheet Metal Press Brake > Inverter Motors Hydraulic Sheet Metal Press Brake Bending Machine For Metal Work

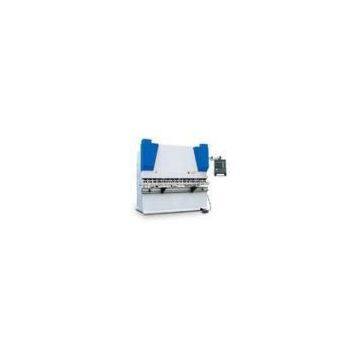

Inverter Motors Hydraulic Sheet Metal Press Brake Bending Machine For Metal Work
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Precision Acceleration Gantry Type Automatic Laser CNC Cutting Machines
-
SIEMENS 840D Control CNC Laser Cutting Machine Gantry Flying Light Beam
-
Gantry Type CNC Laser Metal Cutting Machine With Cantilever Flying Light Beam
-
High Speed Automatic Fagor 8055i CNC Laser Cutting Machine For Metal
-
High Speed Automatic Gantry Type CNC Laser Cutting Machine for Metal
-
Gantry Type Laser Cutting CNC Machinery 6000 / 3000 mm * 1500 mm Metal Sheet
Product Details
| Brand Name | SINOMI, XUDUAN | Place of Origin | China | |
| Model Number | WEHK Series |
Product Description
Certification:ISO9001:2000, CE
Inverter Motors Hydraulic Sheet Metal Press Brake Bending Machine For Metal Work
WEHK Series Hydraulic Metal Sheet Press Brake
Features:?? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ?
?
* Ram and back gauge positions are controlled numerically, driven by inverter motors, ensuring rapid and precise positioning?? ??? ??? ??? ??? ??? ????
* Back gauge is moved by ball screws, moving along linear guides
* Economical but performing Estun E20 controller?? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ??? ?
?
Specification:
| Item | Unit | WEHK-40/2000 | WEHK-63/2500 | WEHK-80/3200 | WEHK-110/3100 | |
| Capacity | Kn | 400 | 630 | 800 | 1100 | |
| Working?table?length | mm | 2000 | 2500 | 3200 | 3100 | |
| Distance?between?housings | mm | 1590 | 1970 | 2600 | 2600 | |
| Throat?depth | mm | 250 | 250 | 320 | 350 | |
| Open?height | mm | 380 | 390 | 420 | 420 | |
| Approach?speed | mm/s | 90 | 90 | 90 | 100 | |
| Pressing?speed | mm/s | ≥12 | ≥8 | ≥7 | ≥10 | |
| Return?speed | mm/s | 100 | 54 | 50 | 85 | |
| Ram?stroke | mm | 100 | 100 | 150 | 150 | |
| Tank?volume | L | 145 | 200 | 300 | 400 | |
| Main?motor?power | kw | 4 | 4 | 7.5 | 7.5 | |
| Overall?dimension | Length | mm | 2220 | 2680 | 3360 | 3360 |
| Width | mm | 1350 | 1420 | 1520 | 1630 | |
| Height | mm | 2100 | 2200 | 2350 | 2580 | |
| Gross?weight | kg | 2900 | 3980 | 6250 | 7500 |
| Item | Unit | WEHK-110/4100 | WEHK-160/3100 | WEHK-160/4100 | WEHK-220/3100 |
| Capacity | Kn | 1100 | 1600 | 1600 | 2200 |
| Working?table?length | mm | 4100 | 3100 | 4100 | 3100 |
| Distance?between?housings | mm | 3600 | 2600 | 3600 | 2600 |
| Throat?depth | mm | 350 | 350 | 350 | 410 |
| Open?height | mm | 420 | 450 | 450 | 450 |
| Approach?speed | mm/s | 100 | 100 | 100 | 90 |
| Pressing?speed | mm/s | ≥10 | ≥8.5 | ≥8.5 | ≥7 |
| Return?speed | mm/s | 85 | 95 | 95 | 85 |
