Home > Products > IDC Connector > Wafer IDC Connectors , WTB Connectors 2.54mm Pitch Crimp Style

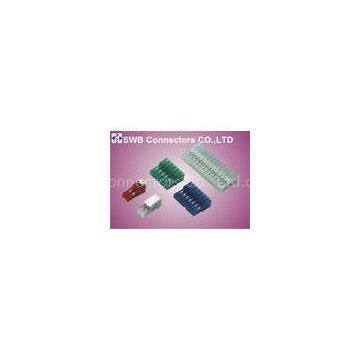

Wafer IDC Connectors , WTB Connectors 2.54mm Pitch Crimp Style
Negotiable
/ Set
1 Set(Min.Order)
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Male Wire to Board Connector IDC 2.54mm Pitch , Crimp Style Connector Wafer
-
20 pin Female DIP Plug Single Row Connector IDC 2.54mm Pitch , Tin Contact Plating
-
Micro match Crimp Style Board to Board Connectors 1.27 mm Pitch
-
Male Board to Board Connection , Crimp Style 1.27mm IDC Connector
-
Straight Orientation Female IDC Insulation Displacement Connector Wire to Board 2.54mm
-
Micro match Board to Board Connectors 1.27 mm Pitch , Male Crimp Connector
Product Details
| Brand Name | SWB | Place of Origin | China | |
| Model Number | 9254 Series |
Product Description
Certification:ISO9001/SGS/UL/RoHS/Reach
Wafer IDC Connectors , WTB Connectors 2.54mm Pitch Crimp Style
Specifications:
|
Product Name |
Wafer IDC Type |
|
Product Series |
IDC Connector |
|
SWB Part Number |
9254HIR |
|
Gender |
Female |
|
Pitch |
2.54mm |
|
No. of Rows |
1 |
|
No. of Contacts |
2~9 |
|
Orientation |
Straight |
|
Contact Material |
Brass |
|
Contact Plating |
Tin Plated |
|
Plastic Material |
Nylon 66 UL 94V-0 |
|
Plastic Color |
Natural |
|
Current Rating |
3A AC/DC |
|
Voltage Rating |
250V AC/DC |
|
OperatingTemp. Range |
-25℃~+85℃ |
|
Contact Resistance |
20mΩ Max |
|
Insulation Resistance |
1000MΩ Min |
|
Withstanding Voltage |
500V AC/minute |
|
Wire Range |
AWG#18~24 |
